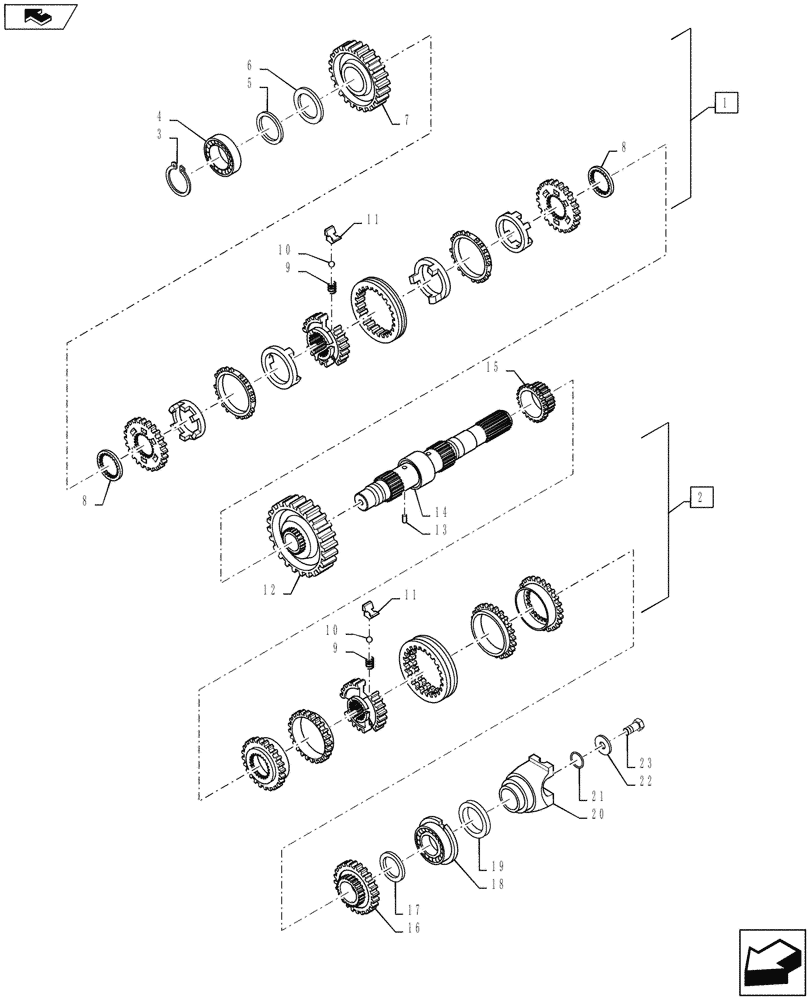

Запчасти Case 588H (21.154.02[01]) - TRANSMISSION SHAFT, SECONDARY, 2WD (21) - TRANSMISSION

1

190427A1

SYNCHRONIZER,90T

Assembly, Incl 8 - 11

1шт.

2

87429974

SYNCHRONIZER

Assembly, Incl 9 - 11

1шт.

3

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

1шт.

4

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

5

358650A1

SHIM,0.05mm Thk

1шт.

5

358651A1

SHIM,0.1mm Thk

1шт.

5

358652A1

SHIM,0.3mm Thk

1шт.

5

196454A1

SHIM,0.5mm Thk

1шт.

6

358649A1

THRUST WASHER

Gear

1шт.

7

87701278

GEAR,44T

1шт.

8

244109A1

SPACER

Can be Purchased Separately

2шт.

9

384773A1

COIL SPRING

Can be Purchased Separately

3шт.

10

384769A1

BALL

Can be Purchased Separately

3шт.

11

326865A1

SPACER

Can be Purchased Separately

3шт.

12

87701293

GEAR,50T

1шт.

13

181108A1

SPLIT PIN,3mm OD x 8mm L

Roll

1шт.

14

87701294

SHAFT

2WD, Secondary (Output Shaft)

1шт.

15

358282A1

GEAR,23T

1шт.

16

358283A1

DRIVEN GEAR,33T

1шт.

17

358639A1

WASHER

Drive Gear

1шт.

18

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

19

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

Ring

1шт.

20

233284A1

YOKE

Front Drive Shaft

1шт.

21

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

22

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

23

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.
