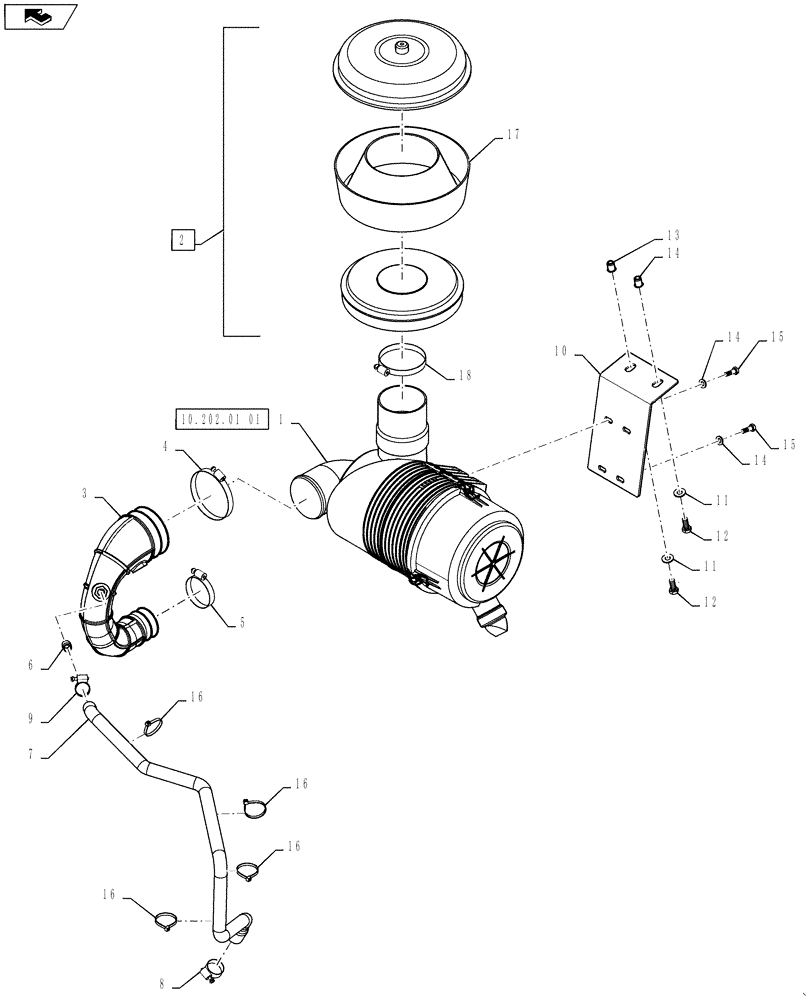

Запчасти Case 588H (10.202.01) - AIR CLEANER INSTALLATION (10) - ENGINE

1

84379525

AIR CLEANER

8 Inch, See Fig.10.202.01 (01)

1шт.

2

228120A1

PRECLEANER

Engine Air, 10 Inch Incl 17

1шт.

3

84422162

HOSE

Air Cleaner

1шт.

4

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

5

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

6

L17985

FITTING,3/8" - 18 NPT

Connector

1шт.

7

84421414

HOSE

Case CCV

1шт.

8

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

9

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

10

84360601

BRACKET

Air Cleaner

1шт.

11

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

2шт.

12

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

13

84471590

INSERT

Threaded

2шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8

4шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch Black

4шт.

17

277377R1

FILTER BOWL

Bowl Pre Cleaner

1шт.

18

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.
