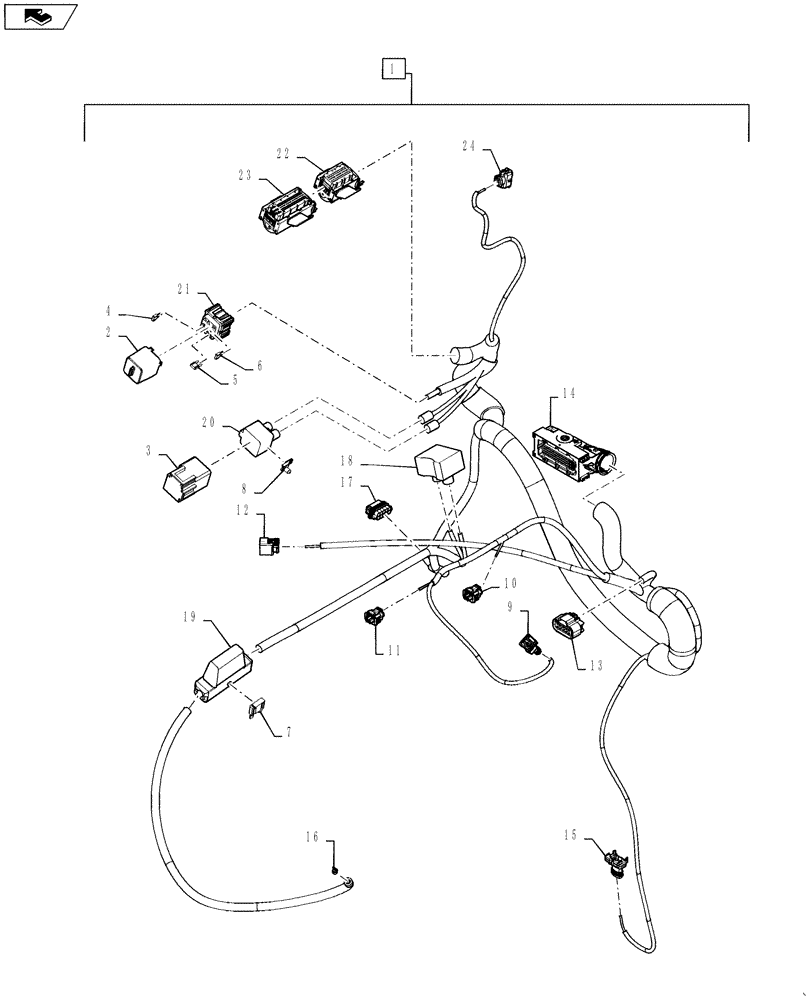

Запчасти Case 588H (55.101.04) - CAB REAR HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84543650

WIRE HARNESS

Incl 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

Relay Holder Incl in 1

1шт.

3

84271717

RELAY,12V, 50A

(Used for Power #1 & #2, ECU B+)

1шт.

4

121411A1

FUSE,7.5A, Mini, Brown

(Used Trans Diff Lock, 4WD Auto Ride Ctl, Turn Signal, Hazzard, ECU B+)

2шт.

5

121414A1

FUSE,20A, Mini, Yellow

(Used for Starter, Air Seat, ECU B+)

1шт.

6

84253577

FUSE,60A, Maxi, Blue

(Used for GCU Glow Plug)

1шт.

7

NSS

NOT SOLD SEPARAT

Clip Incl in 1

1шт.

8

84386689

CLIP

Dillblox

1шт.

9

84607243

ELEC CONNECTOR,Female, 2 Cavities

2 Cavity, Air Temp Sensor

1шт.

10

87709793

WIRE CONNECTOR,Female, 2 Cavities

2 Cavity, Gas Temp Sensor 1

1шт.

11

87709793

WIRE CONNECTOR,Female, 2 Cavities

2 Cavity, Gas Temp Sensor 2

1шт.

12

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

13

87698252

ELEC CONNECTOR,Female, 10 Cavities

10 Cavity, Electric Valve

1шт.

14

NSS

NOT SOLD SEPARAT

Main ConnectorIncl in 1

1шт.

15

87709663

ELEC CONNECTOR,Female, 3 Cavities

3 Cavity, Water in Fuel Switch

1шт.

16

NSS

NOT SOLD SEPARAT

Ground Plug Incl in 1

1шт.

17

87698252

ELEC CONNECTOR,Female, 10 Cavities

10 Pin

1шт.

18

NSS

NOT SOLD SEPARAT

Block Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Junction Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Relay Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Relay Incl in 1

1шт.

22

84474054

WIRE CONNECTOR

30 Cavity

1шт.

23

NSS

NOT SOLD SEPARAT

Connector Incl in 1

1шт.

24

87747172

WIRE CONNECTOR,Female

3 Cavity

1шт.
