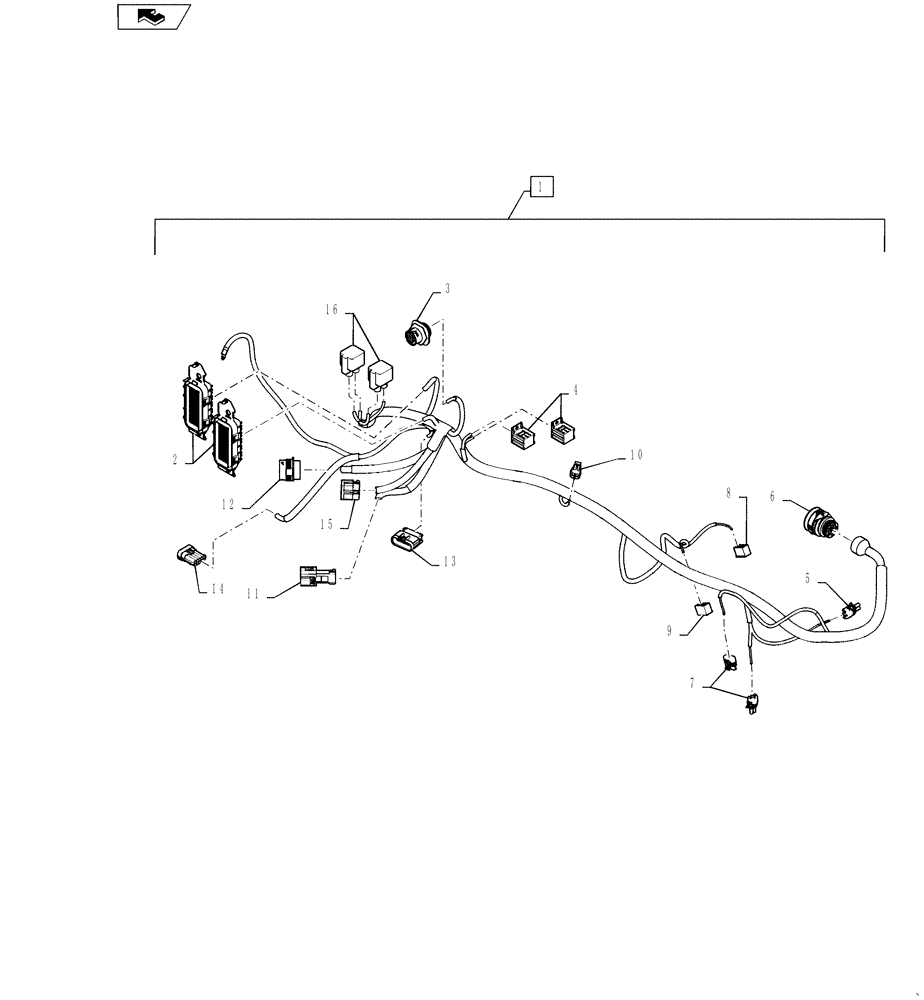

Запчасти Case 588H (55.101.01[02]) - MAIN CAB HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84522727

WIRE HARNESS

Incl 2 - 16 and Fig 55.101.01 (01), Years: -01-JUN-13

1шт.

2

84342278

CONNECTING BLOCK

24 Terminal

2шт.

3

87736919

CONTACT HOUSING,Female, 9 Pole

1шт.

3

87737474

LID

Protective Cover Assembly (Not Shown)

1шт.

4

NSS

NOT SOLD SEPARAT

Timmer Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Connector Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Connector Incl in 1

1шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

2шт.

8

NSS

NOT SOLD SEPARAT

Left Brake Light Switch, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Right Brake Light Switch, Incl in 1

1шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

1шт.

11

NSS

NOT SOLD SEPARAT

Connector Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Connector Incl in 1

1шт.

13

87696550

ELEC CONNECTOR

8 Pin

1шт.

14

87698254

ELEC CONNECTOR

10 Pin

1шт.

15

87696550

ELEC CONNECTOR

8 Pin

1шт.

16

NSS

NOT SOLD SEPARAT

Relay Holder Incl in 1

2шт.
