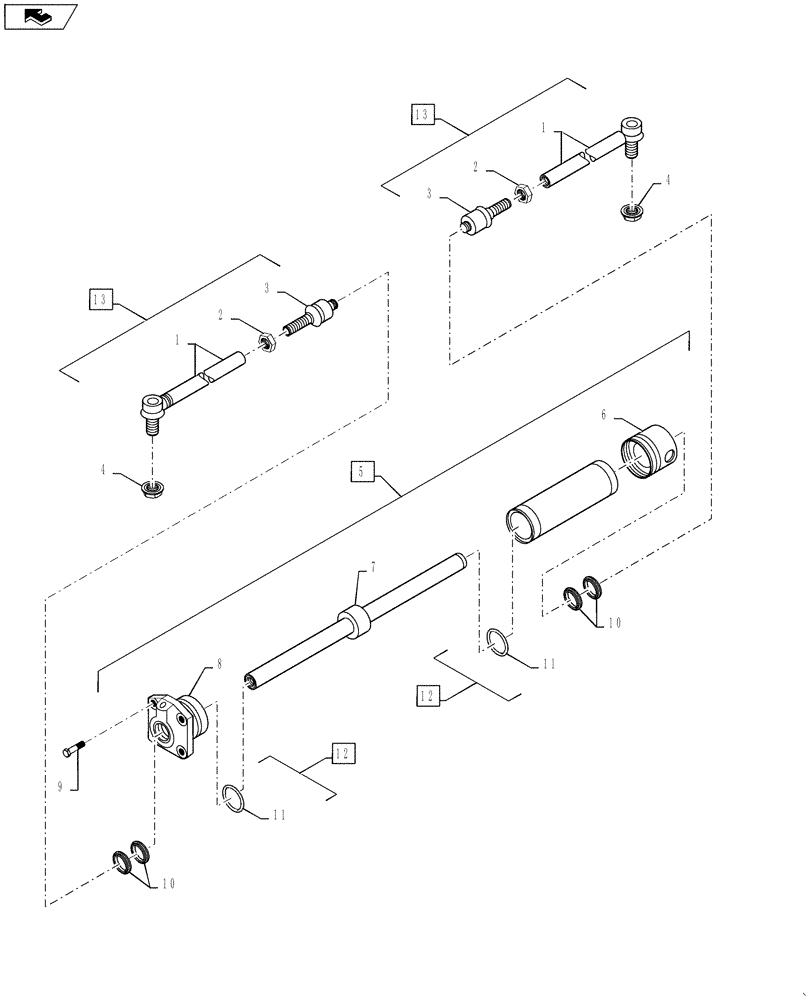

Запчасти Case 588H (41.216.02) - STEERING CYLINDER ASSEMBLY, 4WD (41) - STEERING

1

87710157

STEERING TIE-ROD,26mm OD x 265mm L

Ball Joint

1шт.

2

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

1шт.

3

112509A1

BALL JOINT

Threaded

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

5

87685547

STEERING CYLINDER

Incl 6 - 8,12

1шт.

See Fig 41.216.AB(02) for Seal Kit

1шт.

6

87710142

CYLINDER HEAD

Front Axle

1шт.

7

87710143

ROD

Housing

1шт.

8

87710141

CYLINDER END CAP

Steering

1шт.

9

87710137

BOLT

M12

4шт.

10

NSS

NOT SOLD SEPARAT

Wiper Seal, Incl in 12

4шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 12

2шт.

12

Seal Kit, Incl 10 - 11

1шт.

See Fig 41.216.AB(02) for Seal Kit

1шт.

Confirm Location of Marking on the Cylinder Tube before Ordering Seal Kit.

1шт.

13

144457A1

STEERING ARM

Incl 1 - 3, 1 Per Side

2шт.
