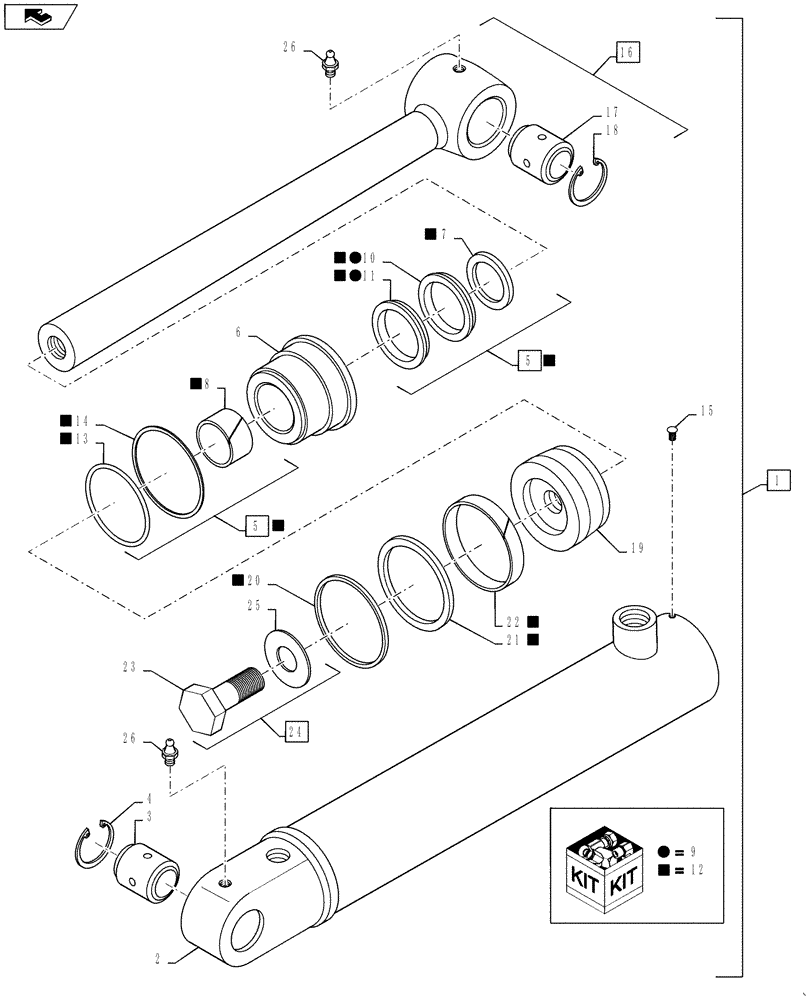

Запчасти Case 588H (35.740.00) - CYLINDER ASSEMBLY FORK LIFT TILT (35) - HYDRAULIC SYSTEMS

1

84426790

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 560mm Stroke

76 ID x 560 mm strk, Forklift Tilt, Incl 2 - 26

2шт.

2

NSS

NOT SOLD SEPARAT

Tube Incl in 1

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

Bushing

1шт.

4

103-21200

SNAP RING,2", Int, #200

2шт.

5

1542964C1

GLAND

Gland, Assy Cylinder Incl in 6 and 12

1шт.

6

297280A1

GLAND

1шт.

7

NSS

NOT SOLD SEPARAT

Seal Incl in 12

1шт.

8

NSS

NOT SOLD SEPARAT

Bushing Incl in 12

1шт.

9

1542874C1

SEAL KIT,38.1mm Rod

Incl 10 - 11

1шт.

10

NSS

NOT SOLD SEPARAT

Seal Incl in 12

1шт.

11

NSS

NOT SOLD SEPARAT

Incl in 12

1шт.

12

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl 7 - 11, 13,14 20 - 22

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Ring Incl in 12

1шт.

15

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

318882A1

ROD ASSY.

Incl 17 , 18

1шт.

17

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

1шт.

18

103-21200

SNAP RING,2", Int, #200

2шт.

19

G108518

PISTON

1шт.

20

NSS

NOT SOLD SEPARAT

Seal Incl in 12

1шт.

21

NSS

NOT SOLD SEPARAT

Seal Incl in 12

1шт.

22

NSS

NOT SOLD SEPARAT

Wear Ring Incl in 12

1шт.

23

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

24

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

Bolt And Washer Assy Incl 23 , 25

1шт.

25

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
