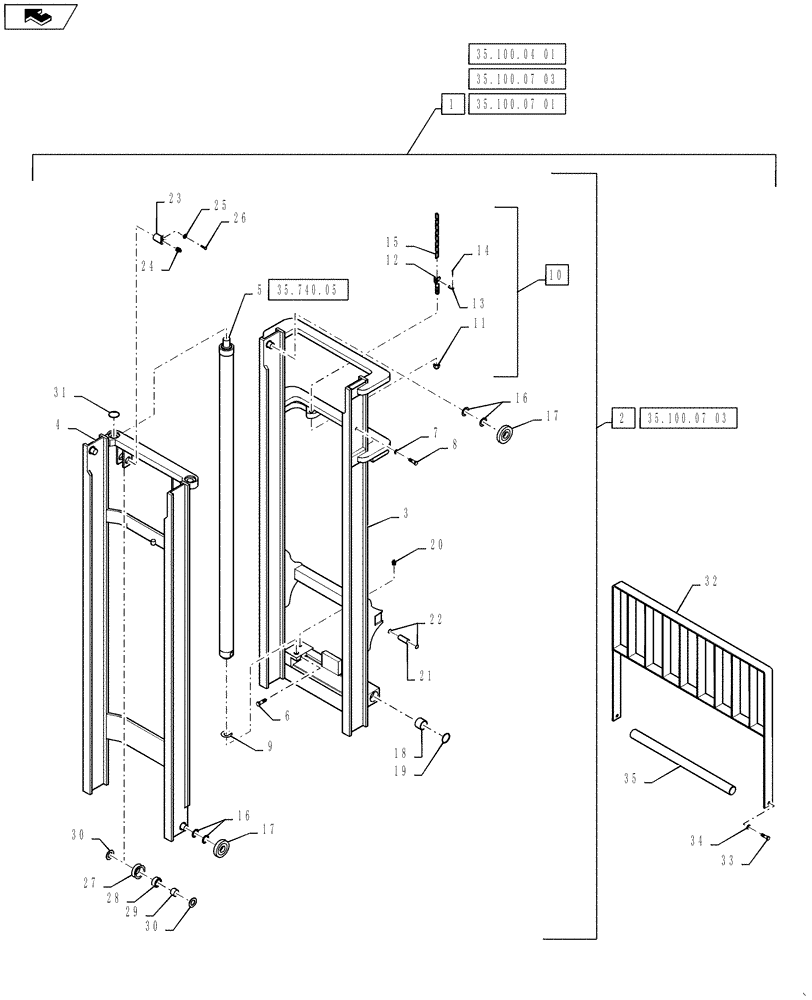

Запчасти Case 588H (35.100.07) - MAST, 8000 LB 6.6M 22 FEET (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
356492A2
KIT
KIT, MAST ASSY 8K 22' 60" HOOK MAST, Incl 324497A3
1шт.
1
324497A3
MAST ASSEMBLY
6.6 M (22 ft) Hook, Incl 2 - 42 Also Incl Parts On Figure 35.100.04(01), 35.100.07(01)
1шт.
356493A2
KIT
KIT, MAST ASSY 8K 22' 60" SHAFT MAST, Incl 329468A3
1шт.
1
329468A3
MAST ASSEMBLY
6.6 M (22 ft) Shaft; Incl 2 - 42 Also Incl Parts On Figure 35.100.04(01), 35.100.07(01)
1шт.
356494A2
KIT
KIT, MAST ASSY 8K 22' 84" SHAFT MAST, Incl 324498A3
1шт.
1
324498A3
MAST ASSEMBLY
6.6 M (22 ft) Shaft Incl 2 - 31 Also Incl Parts On Figure 35.100.04(01), 35.100.07(02)
1шт.
2
337779A1
RAIL ASSY.
Incl 2 - 31 Also Incl Parts On Figure 35.100.07(03)
1шт.
3
337780A1
RAIL
Outer
1шт.
4
337781A1
RAIL
Intermediate
1шт.
5
337689A1
CYLINDER ASSY.
Rail; See Figure 35.740.05
2шт.
6
339777A1
BOLT
Cylinder Retaining
2шт.
7
492-11075
LOCK WASHER,3/4"
2шт.
8
339778A1
BOLT
Rail Stop
2шт.
9
339786A1
SHIM
0.76 mm (0.03 in)
1шт.
10
363168A1
CHAIN (CE)
Incl 11 - 15
2шт.
11
231-24416
LOCK NUT,1"-14, G5
4шт.
12
339781A1
ANCHOR
Chain
4шт.
13
339782A1
PIN
Chain Connect
4шт.
14
339784A1
PIN, SPLIT (COTTER)
Mast
8шт.
15
363158A1
CHAIN (AG)
Mast Rail
2шт.
16
337606A1
SHIM
0.76 mm (0.03 in)
1шт.
17
337607A1
ROLLER
Load
8шт.
18
339787A1
BUSHING
Mast
2шт.
19
103-21300
SNAP RING,3.00", Int, #300
2шт.
20
219-8
LUBE NIPPLE,1/4" - 28 NPTF
2шт.
21
339789A1
PIN
Tilt Mast
2шт.
22
103-11125
SNAP RING,#125, Ext
4шт.
23
339805A1
PIN, ROLL
Chain Roller
2шт.
26
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
27
339806A1
ROLLER
Pulley Chain
2шт.
28
339808A1
BALL BEARING
Ball
2шт.
29
339810A1
RACE
Inner
2шт.
30
339811A1
THRUST WASHER
Thrust
4шт.
31
100-11175
SNAP RING,#175, Ext
4шт.
32
329795A1
BACKREST,1524mm (60 inch)
Load
1шт.
32
47766279
BACKREST,2438.4mm (96 inch)
1шт.
33
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
4шт.
34
492-11062
BEARING WASHER,5/8"
4шт.
35
329457A1
SHAFT
Pivot, Mast
1шт.
Выбрано товаров: 41
