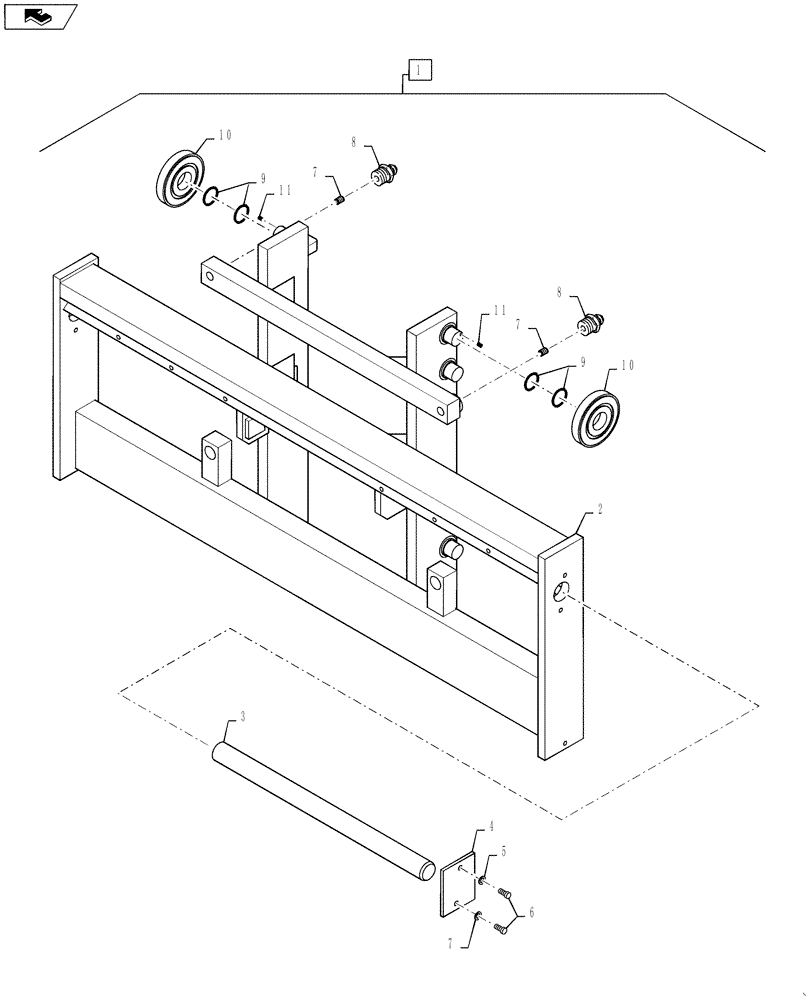

Запчасти Case 588H (35.100.07[02]) - MAST, SHAFT FRAME, 8000 LB 22 FEET (35) - HYDRAULIC SYSTEMS

1

337660A1

HOUSING ASSY.

Shaft, Incl 2 - 11

1шт.

2

337652A1

SUPPORT ASSY.

2133.6 mm (84 in), Shaft

1шт.

3

337653A1

SHAFT

84 Inch

2шт.

4

337651A1

CAP

Shaft

2шт.

5

492-11062

BEARING WASHER,5/8"

4шт.

6

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

8

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

9

337606A1

SHIM

0.76 mm (0.03 in)

1шт.

10

337607A1

ROLLER

Load

6шт.

11

61-4256

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/8"

2шт.
