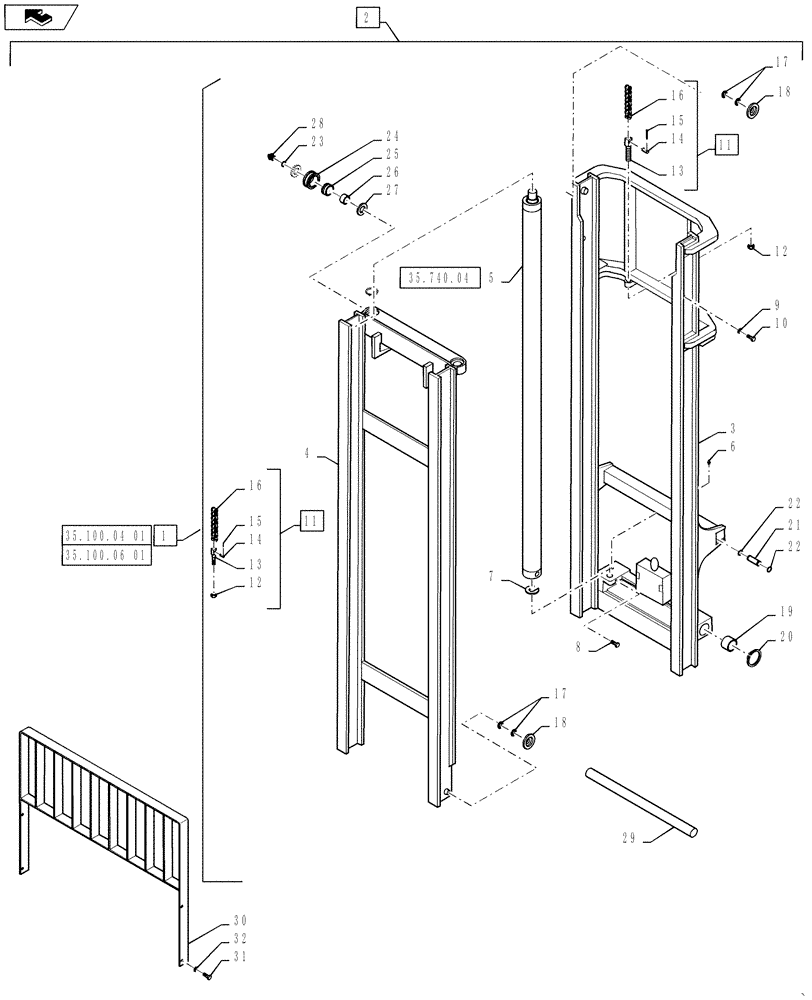

Запчасти Case 588H (35.100.06) - MAST, 8000 LB 15 FEET HOOK AND SHAFT FRAME (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
329464A3
MAST ASSEMBLY
KIT, MAST ASSY 8K 15' 60" HOOK MAST, Incl 329464A3
1шт.
1
329464A3
MAST ASSEMBLY
4.5 M (15 ft), Hook, Incl 2 - 29 Also Incl Parts On Figures 35.100.04(01), 35.100.06(01)
1шт.
1
329466A3
MAST ASSEMBLY
4.5 M (15 ft), Shaft, Incl 2 - 29 Also Incl Parts On Figures 35.100.04(01), 35.100.06(01)
1шт.
1
324496A3
MAST ASSEMBLY
4.5 M (15 ft), Shaft, Incl 2 - 29 Also Incl Parts On Figures 35.100.04(01), 35.100.06(02)
1шт.
2
341189A1
RAIL ASSY.
Incl 3 - 32, Also Incl parts On Figure 35.100.04(01)
1шт.
3
341192A1
RAIL
Outer
1шт.
4
341193A1
RAIL
Inner
1шт.
5
341194A1
CYLINDER ASSY.
Rail, See Figure 35.740.04
2шт.
6
219-8
LUBE NIPPLE,1/4" - 28 NPTF
2шт.
7
339786A1
SHIM
0.76 mm (0.03 in)
1шт.
8
339777A1
BOLT
Cylinder Retaining
2шт.
9
492-11075
LOCK WASHER,3/4"
2шт.
10
339778A1
BOLT
Rail Stop
2шт.
11
341190A1
CHAIN (CE)
Incl 12 - 16
2шт.
12
231-24412
LOCK NUT,3/4"-16, GB
4шт.
13
339819A1
ANCHOR
Chain
4шт.
14
339820A1
PIN
Chain Connect
4шт.
15
432-612
COTTER PIN,3/32" x 3/4"
8шт.
16
341191A1
CHAIN (AG)
Mounts Through Carriage Chain Anchor
2шт.
17
337606A1
SHIM
0.76 mm (0.03 in)
1шт.
18
337607A1
ROLLER
Load
4шт.
19
339787A1
BUSHING
Mast
2шт.
20
103-21300
SNAP RING,3.00", Int, #300
2шт.
21
339789A1
PIN
Mast Tilt
2шт.
22
103-11125
SNAP RING,#125, Ext
4шт.
23
100-11175
SNAP RING,#175, Ext
4шт.
24
339814A1
SHEAVE
Chain
2шт.
25
339816A1
BALL BEARING
Mast
2шт.
26
339817A1
RACE
Inner Mast
2шт.
27
339818A1
THRUST WASHER,44.45mm ID x 88.9mm OD x 4.76mm Thk
Thrust
4шт.
29
329457A1
SHAFT
Pivot,Mast
1шт.
30
329795A1
BACKREST,1524mm (60 inch)
1524 mm (60 in), Load Used With Mast Assembly 329464A3, 329466A3
1шт.
30
329798A1
BACKREST,2133.6mm (84 inch)
Used With Mast Assembly 324496A3
1шт.
30
47766279
BACKREST,2438.4mm (96 inch)
1шт.
31
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
4шт.
32
492-11062
BEARING WASHER,5/8"
4шт.
Выбрано товаров: 37
