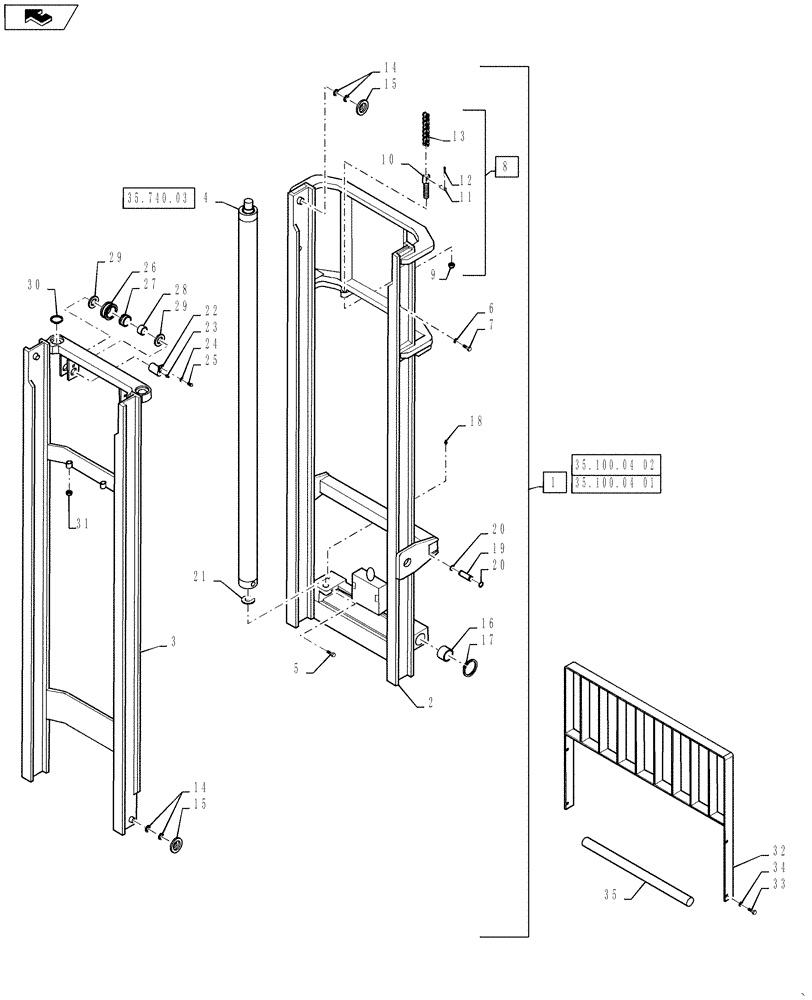

Запчасти Case 588H (35.100.04) - MAST, 6000 LB, 6.6 M (22 FT) (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
356485A2
KIT
KIT, MAST/ASSY 6K 22ft 60" HOOK MAST, Incl 324495A3
1шт.
1
324495A3
MAST ASSEMBLY
6,6 M (22 ft), Hook, Incl 2 - 31 Also Incl Parts On 35.100.04(01), 35.100.04(02)
1шт.
356486A2
KIT
KIT, MAST ASSY 6K 22' 60" SHAFT MAST, Incl 329463A3
1шт.
1
329463A3
MAST ASSEMBLY
6,6 M (22 ft), Shaft, Incl 2 - 31 Also Incl Parts On 35.100.04(01), 35.100.04(02)
1шт.
1
341177A1
RAIL ASSY.
Incl 2 - 31 Also Incl Parts On 35.100.04(02)
1шт.
2
341147A1
RAIL
Outer
1шт.
3
341149A1
RAIL
Intermediate
1шт.
4
341153A1
CYLINDER ASSY.
Rail, See Figure 35.740.03
2шт.
5
339777A1
BOLT
Cylinder Retaining
2шт.
6
492-11075
LOCK WASHER,3/4"
2шт.
7
339778A1
BOLT
Rail Stop
2шт.
8
341176A1
CHAIN (CE)
Incl 9 - 13
2шт.
9
231-24412
LOCK NUT,3/4"-16, GB
4шт.
10
341154A1
ANCHOR
Chain
4шт.
11
341155A1
PIN
Chain Connect
4шт.
12
432-612
COTTER PIN,3/32" x 3/4"
8шт.
13
341157A1
CHAIN (CE)
Mounts Through Carriage Chain Anchor
2шт.
14
339897A1
SHIM
0.76 mm (0.03 in)
1шт.
15
339898A1
ROLLER
Load
8шт.
16
339787A1
BUSHING
Mast
2шт.
17
103-21300
SNAP RING,3.00", Int, #300
2шт.
18
219-8
LUBE NIPPLE,1/4" - 28 NPTF
2шт.
19
339789A1
PIN
Tilt Mast
2шт.
20
103-11125
SNAP RING,#125, Ext
4шт.
21
339786A1
SHIM
0.76 mm (0.03 in)
1шт.
22
363509A1
PIN
Chain
2шт.
25
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
26
339814A1
SHEAVE
Chain
2шт.
27
339816A1
BALL BEARING
Mast
2шт.
28
339817A1
RACE
Inner
2шт.
29
339818A1
THRUST WASHER,44.45mm ID x 88.9mm OD x 4.76mm Thk
Thrust
4шт.
30
100-11175
SNAP RING,#175, Ext
2шт.
31
231-24412
LOCK NUT,3/4"-16, GB
4шт.
32
329795A1
BACKREST,1524mm (60 inch)
1524 mm (60 in), Load
1шт.
32
47766279
BACKREST,2438.4mm (96 inch)
1шт.
33
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
4шт.
34
492-11062
BEARING WASHER,5/8"
4шт.
35
329457A1
SHAFT
Pivot,Mast
1шт.
Выбрано товаров: 40
