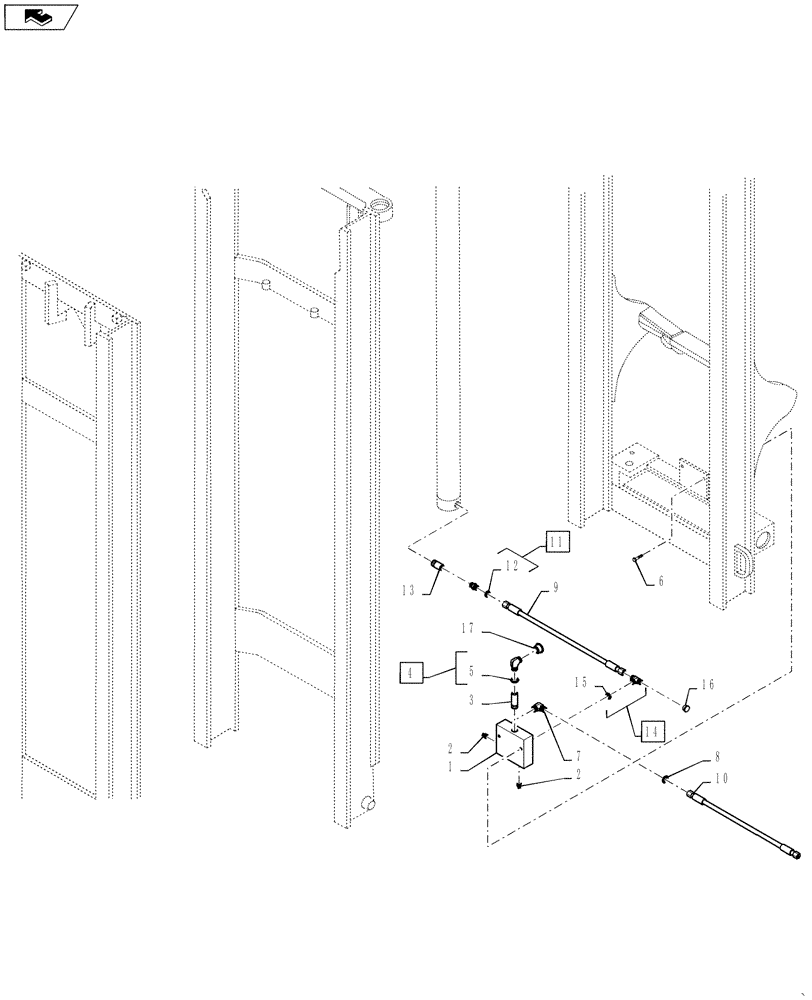

Запчасти Case 588H (35.100.04[01]) - MAST, 6000 LB, HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

337776A1

BLOCK

Manifold

1шт.

2

339834A1

PLUG

Manifold

2шт.

3

352972A1

VALVE

Flow Limiter

1шт.

4

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl 5

1шт.

5

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

Incl in 4

1шт.

6

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

1шт.

7

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

337777A1

HOSE

Right Hand Assembly

1шт.

10

337778A1

HOSE

Left Hand Assembly

1шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Straight Incl 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 11

1шт.

13

352973A1

LIMITER, TRAVEL

Flow

1шт.

14

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 14

1шт.

16

218-755

CAP,37 Degree, 3/4"-16

1шт.

17

218-756

CAP,37 Degree, 7/8"-14

1шт.
