Запчасти Case 588H (10.400.BF[01]) - RADIATOR & COOLER MOUNTING, 4WD (10) - ENGINE

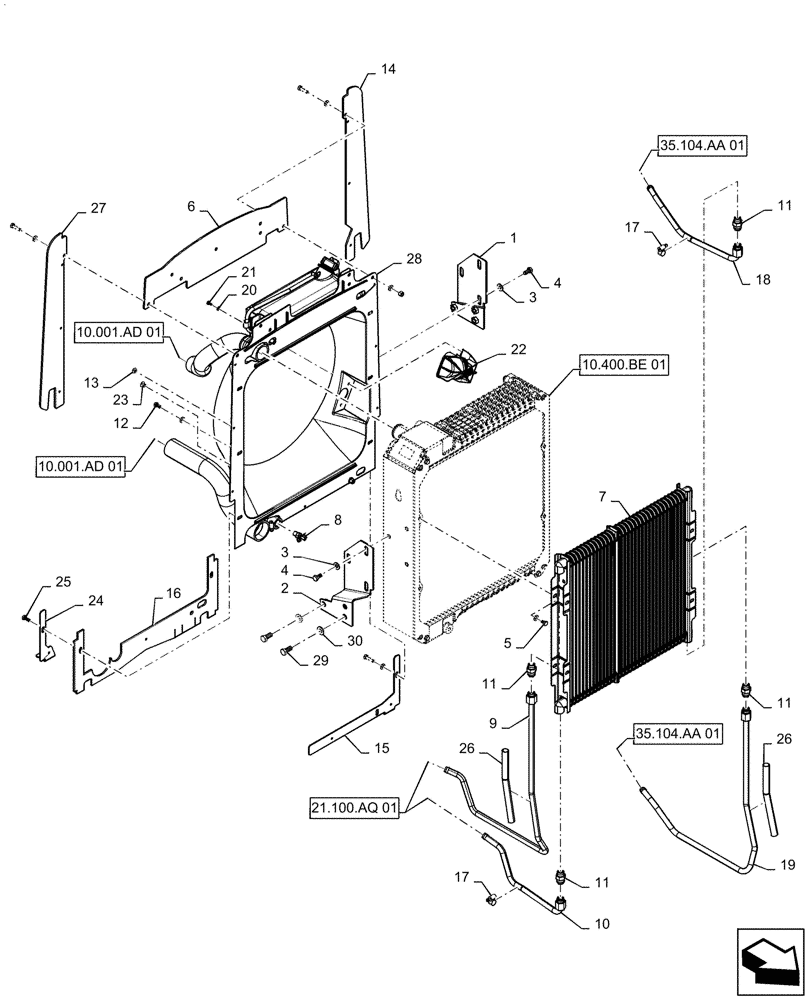

Схема запчастей Case 588H - (10.400.BF[01]) - RADIATOR & COOLER MOUNTING, 4WD (10) - ENGINE
10.400.be 01
8
28
18
26
9
11
6
17
3
11
17
26
21
3
7
13
23
19
11
4
1
22
2
14
12
16
29
5
27
30
20
24
15
10
25
4
11
10.001.ad 01
10.001.ad 01
21.100.aq 01
35.104.aa 01
35.104.aa 01

Артикул

Название

Примечание

Количество

1

47369263

BRACKET

LH Radiator

1шт.

2

47369260

BRACKET

RH Radiator

1шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

5

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

6

47562203

SEAL

Top Radiator

1шт.

7

87441876

OIL COOLER

Transmission and Hydraulic

1шт.

8

76904

DRAINCOCK/TAP SUPPLY

Drain Cock

1шт.

9

47428709

TUBE

RH, Upper Cooler

1шт.

10

47428710

TUBE

RH, Lower Cooler

1шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

4шт.

12

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

13

87301355

RIVET,Pop, 3/16" x .575"

6шт.

14

47565620

SEAL

LH, Radiator

1шт.

15

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

LH, Lower Shroud

1шт.

16

84540367

SEAL,614mm L

Lower Radiator

1шт.

17

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

18

47428711

TUBE

LH, Lower Cooler

1шт.

19

47428712

TUBE

LH, Upper Cooler

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

22

84185540

DUST CAP

Ejector

1шт.

23

87301356

RIVET,Pop, 3/16" x .700"

1шт.

24

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

RH, Lower Shroud

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

26

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

2шт.

27

47562206

SEAL

RH, Radiator

1шт.

28

47615718

SHROUD

Fan

1шт.

29

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

30

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

Выбрано товаров: 30
