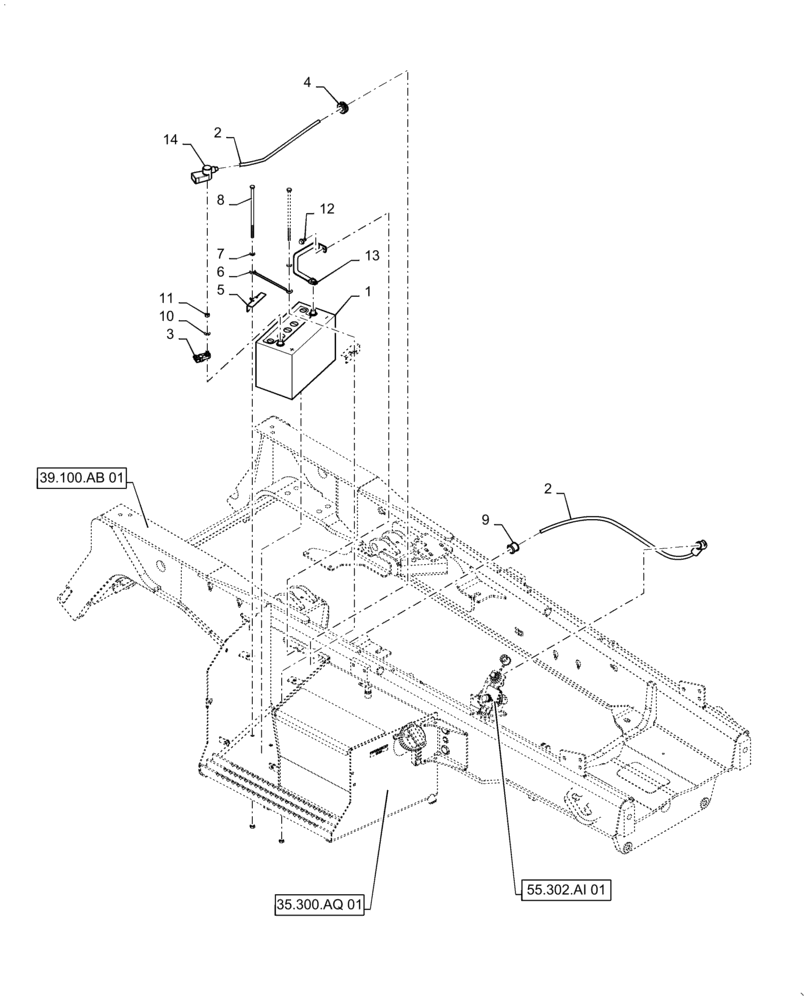

Запчасти Case 588H (55.302.AG[01]) - SINGLE BATTERY INSTALL - W/O COLD START (55) - ELECTRICAL SYSTEMS

1

BMF31GW

WET BATTERY

(USA)

1шт.

1

CCMF31GW

WET BATTERY

(CAN)

1шт.

2

84470551

CABLE,1350mm L

Main Battery Positive

1шт.

3

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

3/8 Positive Stud

1шт.

4

257279A1

GROMMET

Battery Cable

1шт.

5

D125079

BRACKET

Angle Battery Hold Down

2шт.

6

D55561

RETAINER

Battery Hold Down

1шт.

7

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

8

86624977

BOLT,Hex, M10 x 245mm, Cl 8.8

2шт.

9

87493906

GROMMET

1-5/64 x 1-1/4 x 1

1шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

13

D83485

CABLE,300mm L

Strap Battery Ground

1шт.

14

47450036

BOOT

Battery Positive

1шт.
