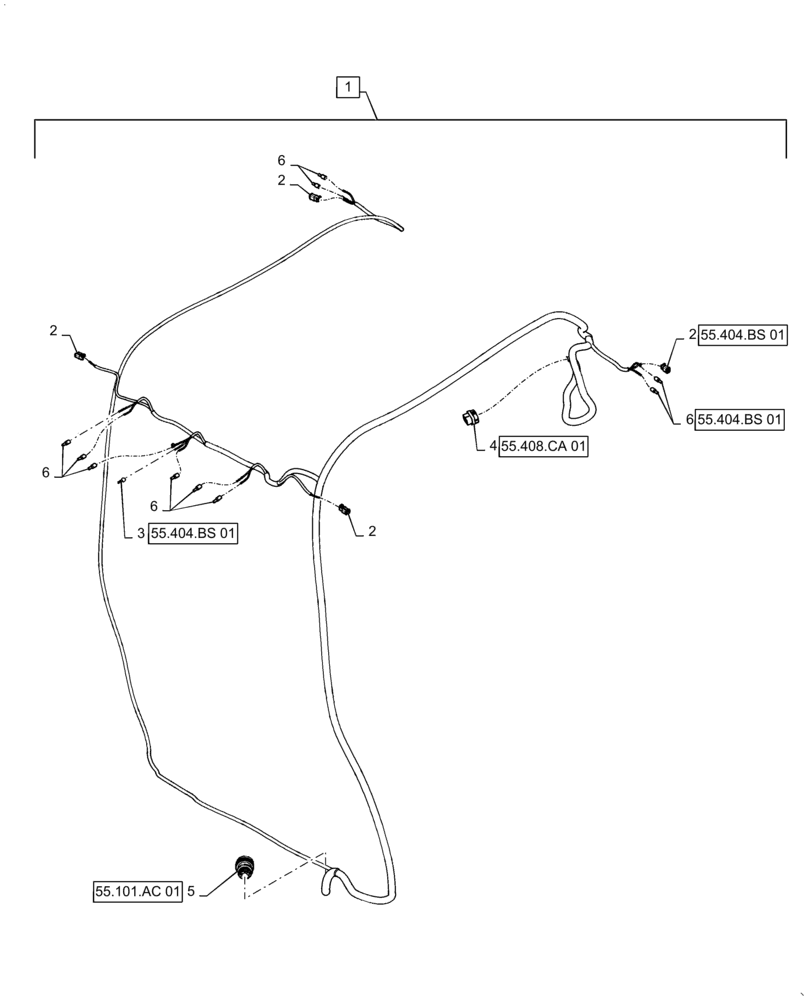

Запчасти Case 588H (55.100.DP[02]) - ROPS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84526789

WIRE HARNESS

ROPS, Incl 2 - 6

1шт.

2

87696093

ELEC CONNECTOR,Female, 2 Cavities

Front & Rear Work & Signal Light, X-193, X-194, X-512, X-513

4шт.

2

87696145

LOCKING TAB

Secondary, X-193, X-194, X-512, X-513

4шт.

3

84120008

TERMINAL CONNECTOR,Female, 1 Cavity

Break Light, Ground, X-521

1шт.

4

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

to Instrument Cluster, X-033

1шт.

5

87704526

ELEC CONNECTOR

to Main Harness, X-020

1шт.

6

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Front & Rear Work & Tail & Signal Light, X-196, X-197, X-198, X-201, X-500, X-513, X-520, X-524, X-525, X-526, X-528

9шт.

6

84275817

WIRE CONNECTOR

X-528

1шт.
