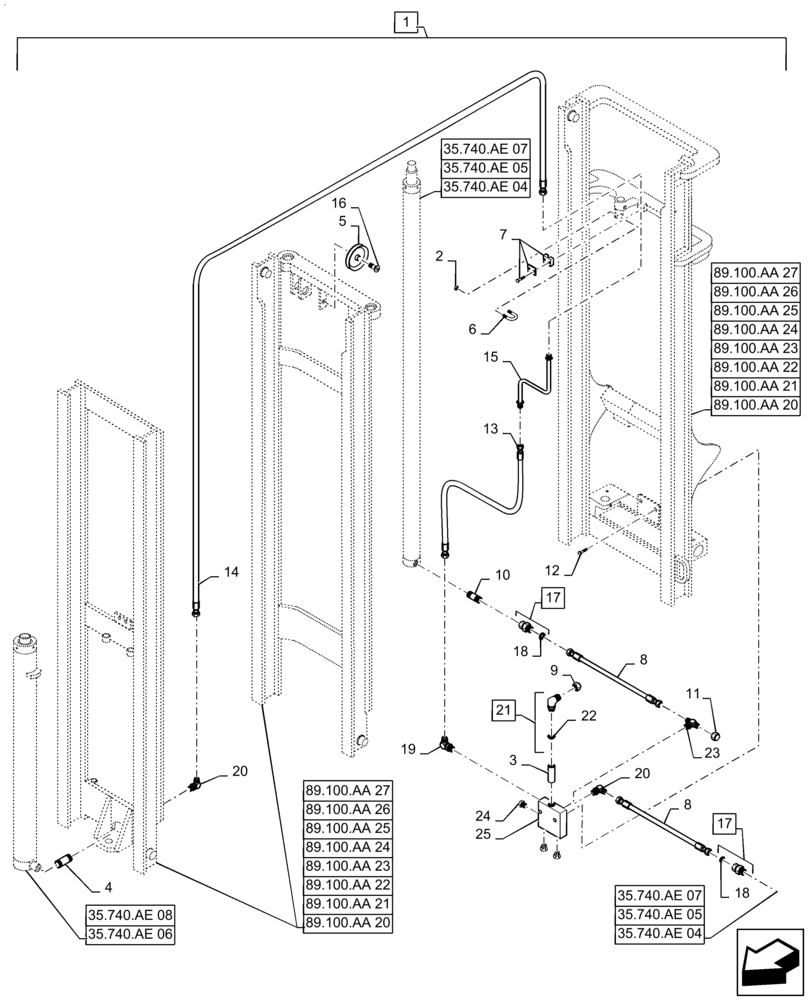

Запчасти Case 588H (35.740.AH[02]) - 8000 LB FREELIFT MAST HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

47631432

MAST ASSEMBLY

1шт.

2

231-2444

NUT,1/4"-28, GB

2шт.

3

352972A1

VALVE

Flow Limiter

1шт.

4

353026A1

LIMITER, TRAVEL

Orifice

1шт.

5

353024A1

SHEAVE

Hose

1шт.

6

D86366

U-BOLT

1шт.

7

353022A1

TUBE

Freelift

1шт.

8

337777A1

HOSE

RH Mast

2шт.

9

218-756

CAP,37 Degree, 7/8"-14

1шт.

10

352973A1

LIMITER, TRAVEL

Orifice

1шт.

11

218-755

CAP,37 Degree, 3/4"-16

1шт.

12

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

2шт.

13

47778413

HYDRAULIC HOSE,16.00mm ID x 1257.3mm L

Mast

1шт.

14

47778415

HYDRAULIC HOSE,16.00mm ID x 2476.5mm L

Mast

1шт.

15

353021A1

TUBE

Freelift Mast

1шт.

16

353025A1

BOLT

Hose Sheave

1шт.

17

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Used on 17

2шт.

19

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl 18

1шт.

20

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

1шт.

21

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl 22

2шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used on 21

2шт.

23

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

24

339834A1

PLUG

Manifold

3шт.

25

360808A1

BLOCK

Manifold

1шт.
