Запчасти Case 588H (35.359.AB[01]) - FLOW CONTROL VALVE (35) - HYDRAULIC SYSTEMS

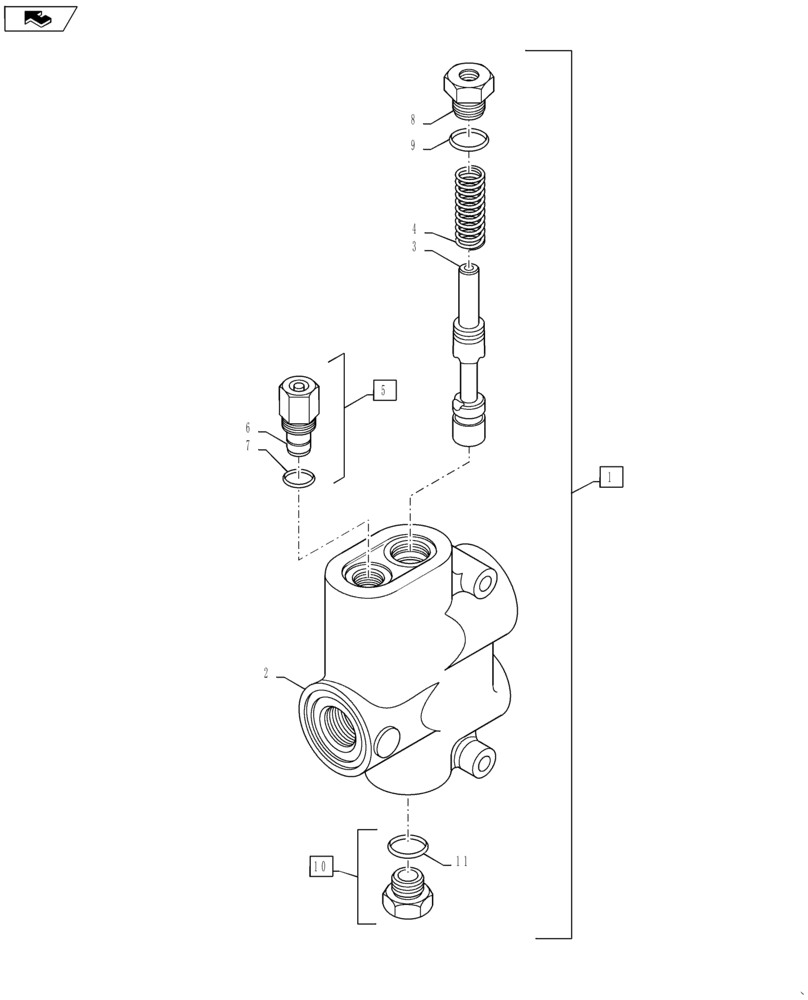

Схема запчастей Case 588H - (35.359.AB[01]) - FLOW CONTROL VALVE (35) - HYDRAULIC SYSTEMS
5
1
6
2
8
7
9
10
11
3
4
home

Артикул

Название

Примечание

Количество

1

87548326

HYDRAULIC VALVE

Flow Control; 121.4 mm (4-25/32 in) x 187.8 (7-13/32); Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Body Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spool Incl in 1

1шт.

4

D82777

SPRING

Spool

1шт.

5

87549581

VALVE, PRESSURE RELI

Flow Control Relief Valve Cartridge Incl 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

Cartridge Incl in 5

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

S114009

PLUG

Valve

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 11
