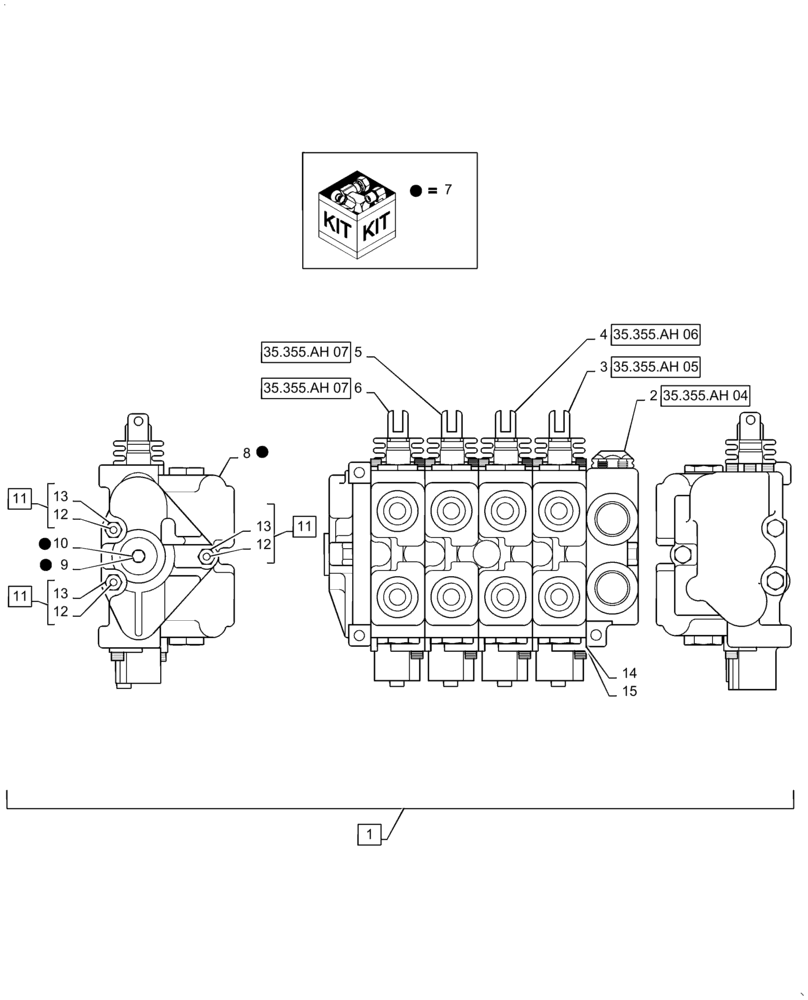

Запчасти Case 588H (35.355.AH[02]) - VAR - 423040 - 4 SPOOL CONTROL VALVE, FORKLIFT (35) - HYDRAULIC SYSTEMS

1

356884A1

VALVE, CONTROL

Forklift Control, Four Spool, Incl 2 - 15

1шт.

2

360519A1

HYD VALVE SECTION

Inlet (Port A & B)

1шт.

3

360520A1

HYD VALVE SECTION

Lift (Port C)

1шт.

4

358661A1

HYD VALVE SECTION

Tilt (Port D & E)

1шт.

5

360521A1

HYD VALVE SECTION

Side Shift, With Work Port Restrictors (Port F & G)

1шт.

6

375759A1

HYD VALVE SECTION

Auxiliary, Without Work Port Restrictor

1шт.

7

348719A1

COVER

End Cover Kit Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Housing Incl in 7

1шт.

9

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

Incl 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

348721A1

PACKAGE, REPAIR

Incl 12,13

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt Incl in 11

3шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Between sections

15шт.

15

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between Sections

5шт.
