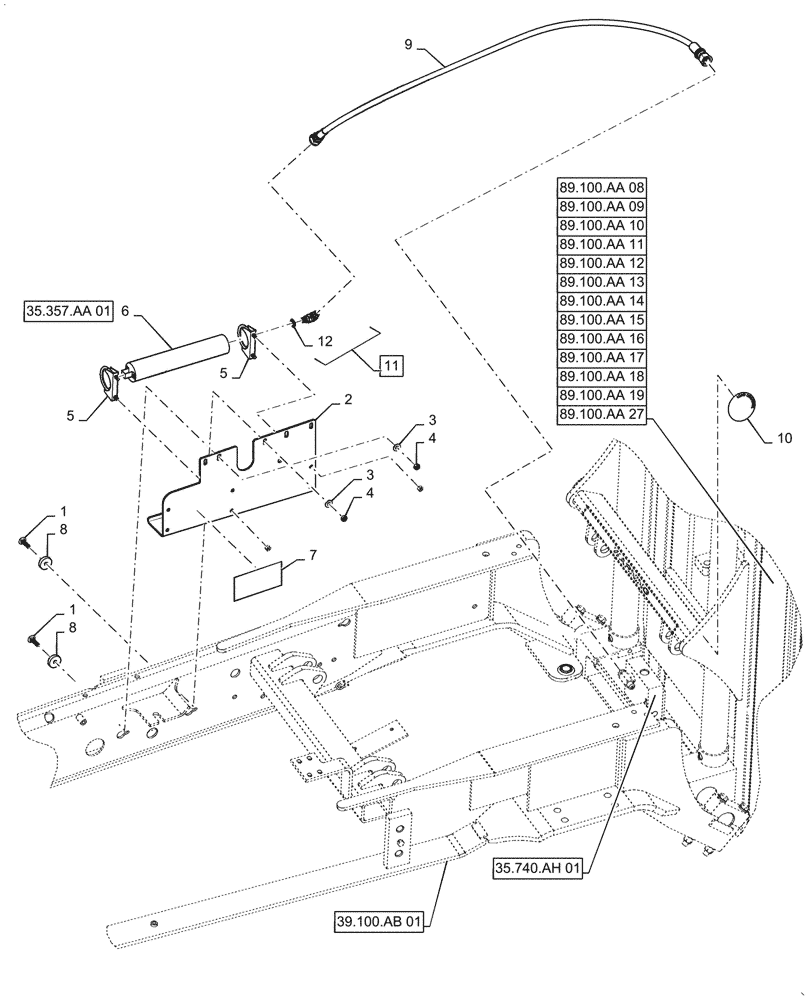

Запчасти Case 588H (35.355.AB[01]) - VAR - 423041 - HYDRAULIC LOAD CONTROL (35) - HYDRAULIC SYSTEMS

1

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

2

86993690

MOUNTING PLATE

Accumulator

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

A13240

CLAMP,2-5/8" ID

2шт.

6

448285A1

ACCUMULATOR

1шт.

7

384260A1

WARNING DECAL,168mm x 88mm H

Pressurized System Hazard

1шт.

8

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

2шт.

9

358187A1

AIR HOSE,12.70 mm ID x 1675.00 mm

1шт.

10

47976297

DECAL

Load Control

2шт.

11

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

47468728

KIT

DIA Kit, Load Control, (Order from Wholegoods Only) Instruction 47465153, Incl 1 - 11

1шт.
