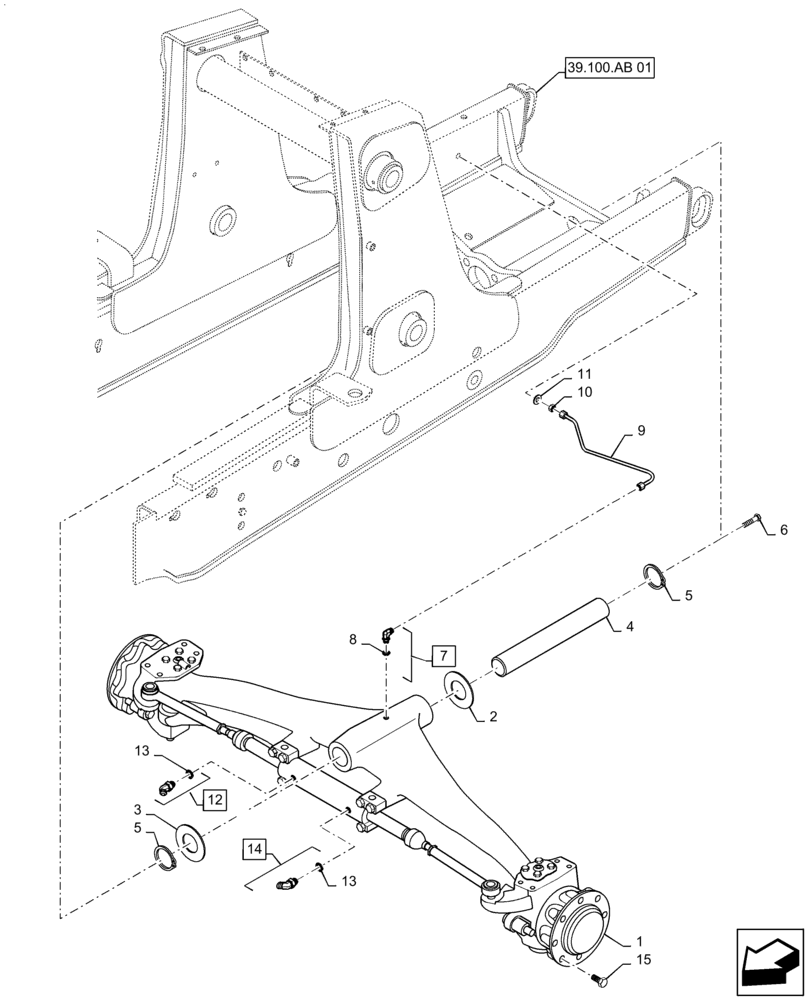

Запчасти Case 588H (27.550.AJ[01]) - STEERING AXLE - 2WD (27) - REAR AXLE SYSTEM

1

86990836

FRONT AXLE

Two Wheel Drive

1шт.

2

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

4шт.

3

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

1шт.

4

391451A1

PIVOT PIN,50mm OD x 431.5mm L

Axle Pivot

1шт.

5

86625154

SNAP RING,M50, Ext

2шт.

6

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

7

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1шт.

8

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

87572760

HOSE ASSY.,6.4mm ID x 533mm L

Lubrication Line

1шт.

10

76085536

NUT,1/8-27 NPSM

1шт.

11

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

12

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

1шт.

13

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

2шт.

14

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

1шт.

15

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

16шт.
