(25.310.AI[01]) - DRIVE AXLE, HOUSING

Запчасти Case 588H (25.310.AI[01]) - DRIVE AXLE, HOUSING (25) - FRONT AXLE SYSTEM

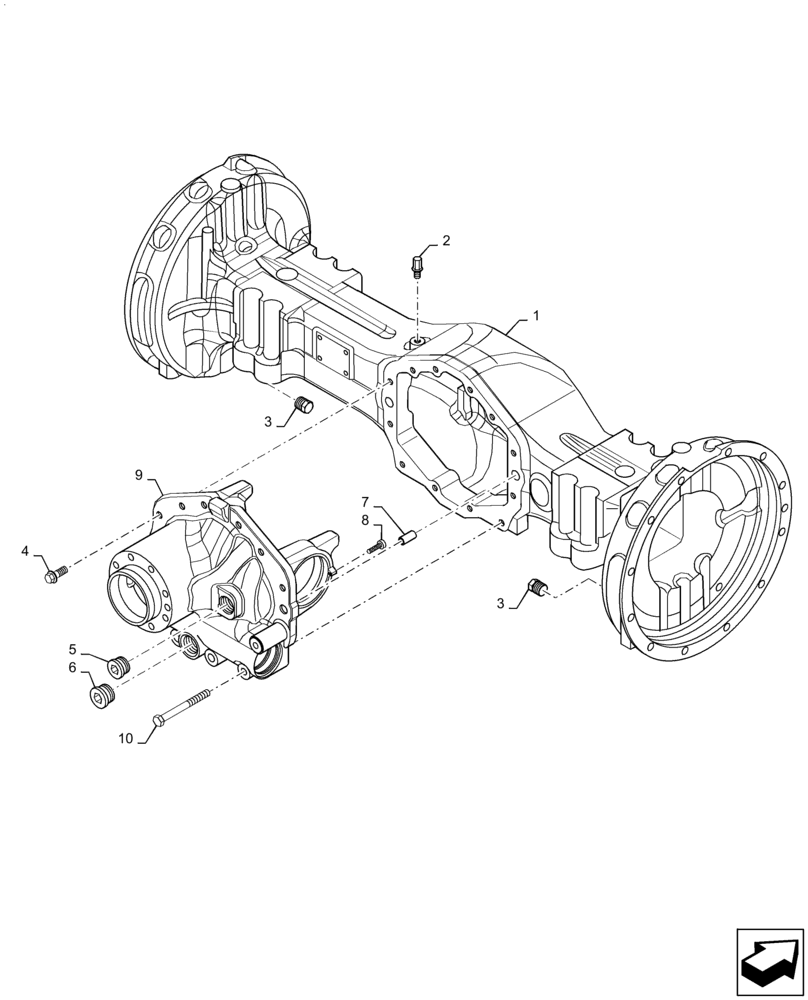

Схема запчастей Case 588H - (25.310.AI[01]) - DRIVE AXLE, HOUSING (25) - FRONT AXLE SYSTEM
8
2
6
9
1
10
3
3
5
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87708390

AXLE HOUSING

Rear

1шт.

2

1966149C1

BREATHER

Axle

1шт.

3

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

4

S301064

BOLT,M12

M12

8шт.

5

434746A1

PLUG,M24 x 1.5

M24 Hex

1шт.

6

100557A1

PLUG, DRAIN,M30 x 2

Hex

1шт.

7

1966138C1

DOWEL

Pin

2шт.

8

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

9

87708391

CARRIER,Bevel Gear

Rear Axle

1шт.

10

87708392

BOLT,Hex, M12 x 100mm

4шт.
