(90.108.AB[04]) - DECALS COMMON ENGLISH

Запчасти Case 586H (90.108.AB[04]) - DECALS COMMON ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

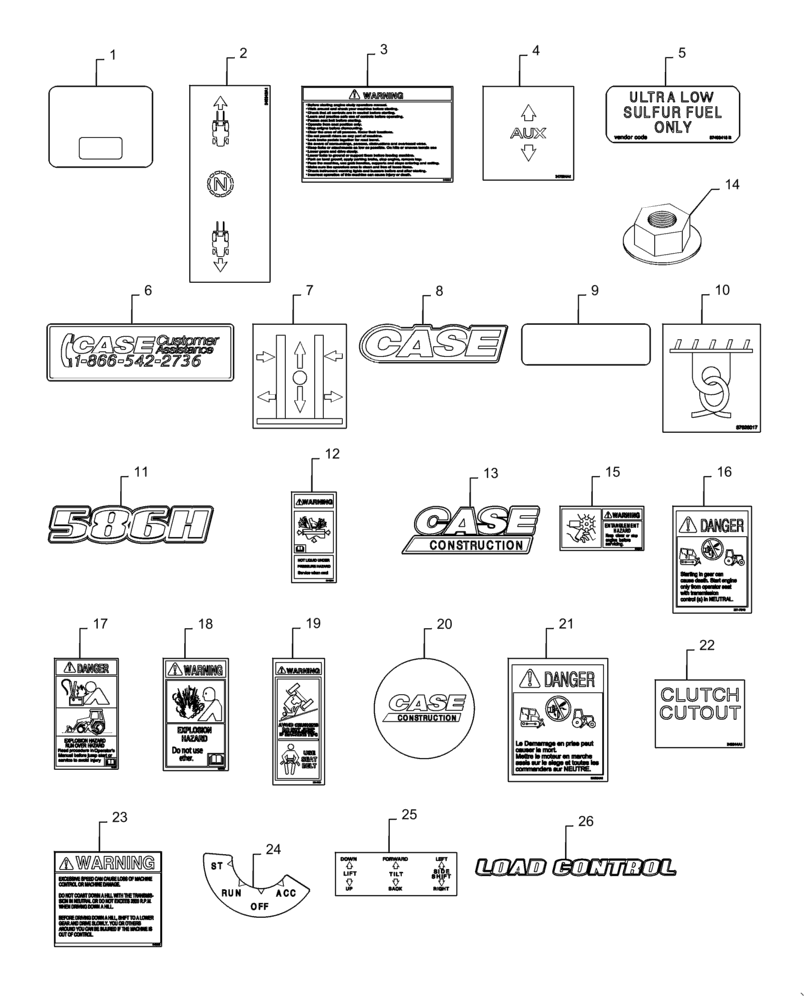

Схема запчастей Case 586H - (90.108.AB[04]) - DECALS COMMON ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
23
26
2
5
22
16
21
24
25
6
12
17
15
9
20
7
10
1
4
11
14
3
19
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

192450A1

DECAL

Poly Film

1шт.

2

348343A1

DECAL

F-N-R

1шт.

3

347909A1

DECAL

Warning Before Start

1шт.

4

347894A1

DECAL

Auxiliary Control

1шт.

5

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfer Fuel

1шт.

6

84311902

DECAL

Customer Assistance

1шт.

7

87432940S

DECAL

Fork Positioner

1шт.

8

84495419

DECAL,834mm x 212mm H

Case Inpact Logo

2шт.

9

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector

2шт.

10

84305368

DECAL

Tie Down

4шт.

11

84495426

DECAL

586H Model Only

2шт.

12

384258A1

DANGER DECAL

Radiator Cap Warning

2шт.

13

84478049

EMBLEM

Case Grill Medallion

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

15

384267A1

WARNING DECAL

Fans/Belts

2шт.

16

321-7040

DANGER DECAL

Starting

1шт.

17

384269A1

DANGER DECAL

Correct Jump Start Method

2шт.

18

47728994

DECAL

Explosion Hazard

1шт.

19

321-7030

WARNING DECAL

Do Not Jump

1шт.

20

84498473

DECAL

50 mm Steering Wheel

1шт.

21

359934A1

DECAL

Caution Starting In Gear

1шт.

22

348344A1

DECAL

Clutch Cutout

1шт.

23

D150900

DECAL

Down Hill

1шт.

24

321-4921

DECAL

Ignition

1шт.

25

321-3902

DECAL

Fork Control

1шт.

26

84497756

DECAL

Load Control

2шт.
