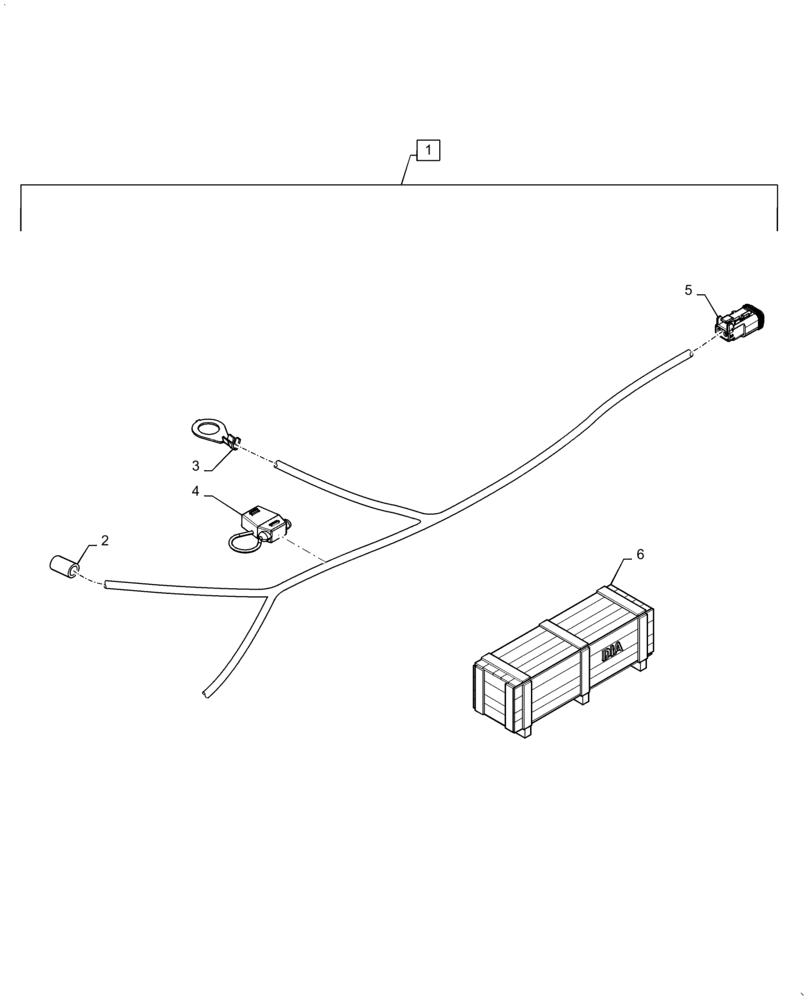

Запчасти Case 586H (55.100.DP[03]) - HEATED CCV WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47769957

WIRE HARNESS

Heated CCV, Incl 2 - 5

1шт.

2

47424878

WIRE CONNECTOR

X-003

1шт.

3

84279551

ELEC CONNECTOR,1.00 - 2.50mm

X-002

1шт.

4

84127702

FUSE,10A, Mini, Red

1шт.

5

87695909

ELEC CONNECTOR,Female, 2 Pole

to CCV Heater, X-003

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2wy Plug

1шт.

6

47850063

CONSTRUCTION DIA

DIA Heated CCV, Incl 1

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
