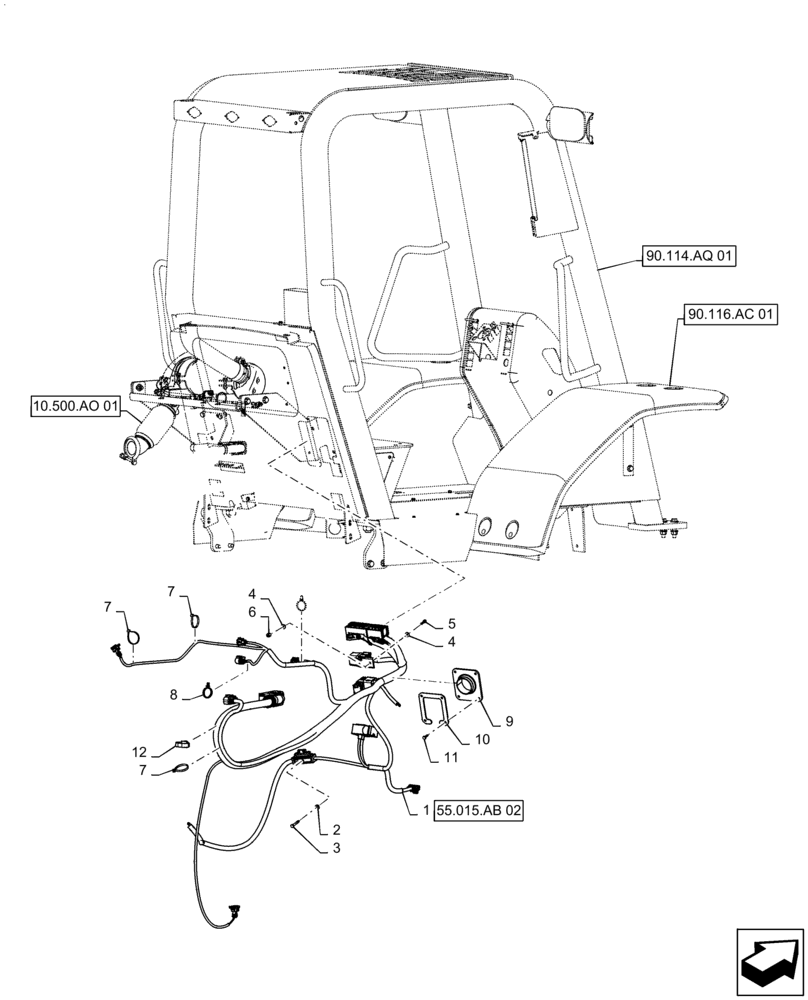

Запчасти Case 586H (55.015.AB[01]) - ENGINE WIRE HARNESS MOUNTING (55) - ELECTRICAL SYSTEMS

1

47714122

WIRE HARNESS

Engine

1шт.

See Fig 55.015.AB (02) For Service Parts

1шт.

1

47714172

WIRE HARNESS

, Start Year: 25-MAR-15

1шт.

2

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

3

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

5

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

1шт.

6

832-10405

NUT,M5 x .8, Cl 8

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

8

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree

1шт.

9

84498262

GROMMET,80mm L, 90mm L, 30mm L

Rubber

1шт.

10

47735085

MOUNTING PLATE

Firewall

1шт.

11

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

4шт.

12

84259663

CABLE TIE,228.6mm L, Nylon, Black

1шт.
