(35.300.AN[01]) - HYDRAULIC OIL FILTER ASSY

Запчасти Case 586H (35.300.AN[01]) - HYDRAULIC OIL FILTER ASSY (35) - HYDRAULIC SYSTEMS

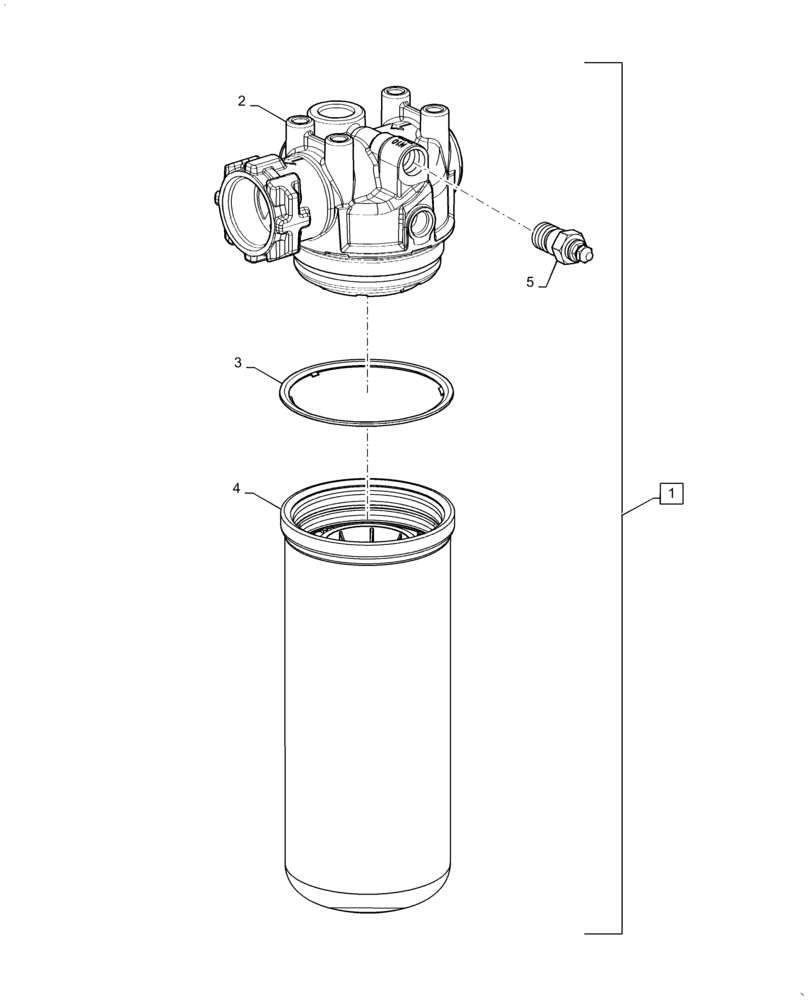

Схема запчастей Case 586H - (35.300.AN[01]) - HYDRAULIC OIL FILTER ASSY (35) - HYDRAULIC SYSTEMS
2
5
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47667947

HYDRAULIC OIL FILTER

Complete, Incl 2 - 4, Years: -01-MAR-16

1шт.

2

NSS

NOT SOLD SEPARAT

Filer Base, Incl in 1

1шт.

3

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Filter Sealing

1шт.

4

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

Spin-on

1шт.

5

47597918

PRESSURE SWITCH

Hydraulic Filter Restriction

1шт.

Выбрано товаров: 5
