Запчасти Case 586H (27.100.AB[02]) - STEERING AXLE, HOUSING, 4WD (27) - REAR AXLE SYSTEM

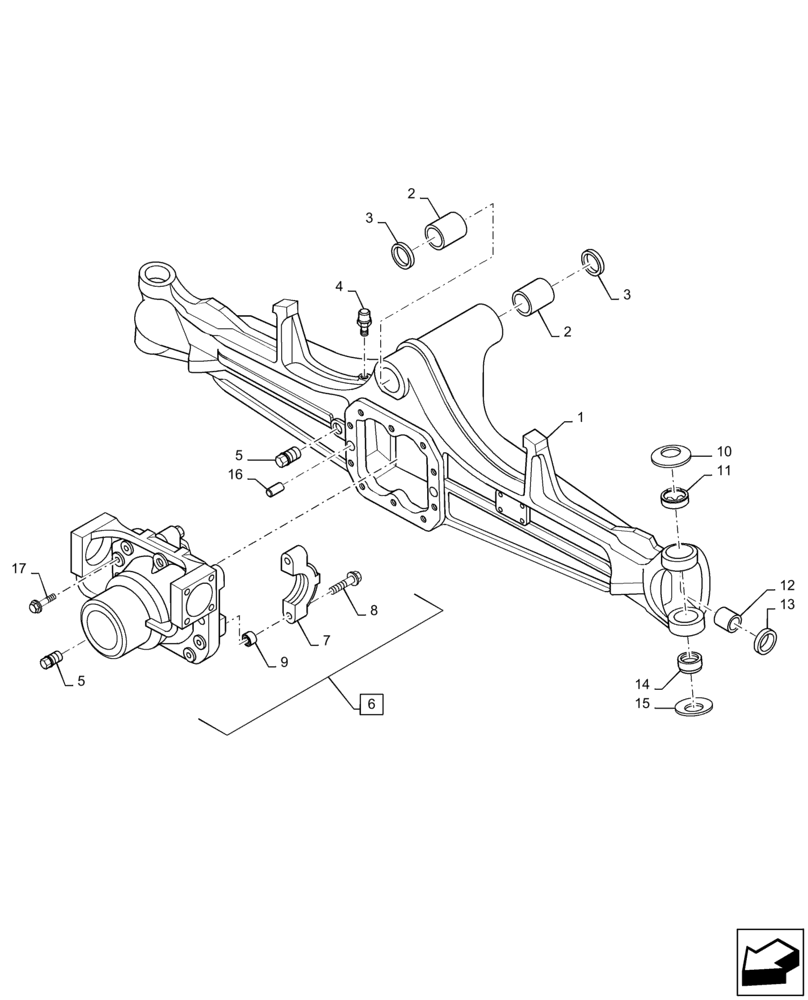

Схема запчастей Case 586H - (27.100.AB[02]) - STEERING AXLE, HOUSING, 4WD (27) - REAR AXLE SYSTEM
17
3
7
2
13
11
4
2
6
9
12
10
14
5
16
15
5
1
8
3

Артикул

Название

Примечание

Количество

1

84554781

HOUSING

Axle, PS1121

1шт.

2

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

Pivot

2шт.

3

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

Pivot

2шт.

4

84258517

BREATHER,M10 x 1

M10 Valve And Stem

1шт.

5

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

6

84527674

COVER ASSY

Differential, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing Cap, Incl in 6

2шт.

8

84265310

SCREW,M12 x 70mm, Cl 12.9

Incl in 6

4шт.

9

47486257

BUSHING,12mm ID x 15mm OD x 25mm L

Incl in 6

4шт.

10

84241623

SPRING,Belleville, 36.13mm ID x 70.85mm OD x 2.26mm Thk

2шт.

11

84529088

BUSHING,35mm ID x 46.99mm OD x 18.45mm W

2шт.

12

84522998

BRONZE BUSHING,30mm ID x 34mm OD x 30mm L

2шт.

13

47601946

OIL SEAL,30mm ID x 44mm OD x 17mm Thk

2шт.

14

84528985

BEARING ASSY,24.99mm ID x 46.99mm OD x 14.77mm W

2шт.

15

84529094

SPRING,42.6mm ID x 60.85mm OD x 1mm Thk

2шт.

16

4985062

DOWEL,15mm OD x 25mm L

2шт.

17

47723589

SERRATED BOLT,Hex Flg, M12 x 1.75 x 33mm, Cl 12.9, Full Thd

10шт.

Выбрано товаров: 17
