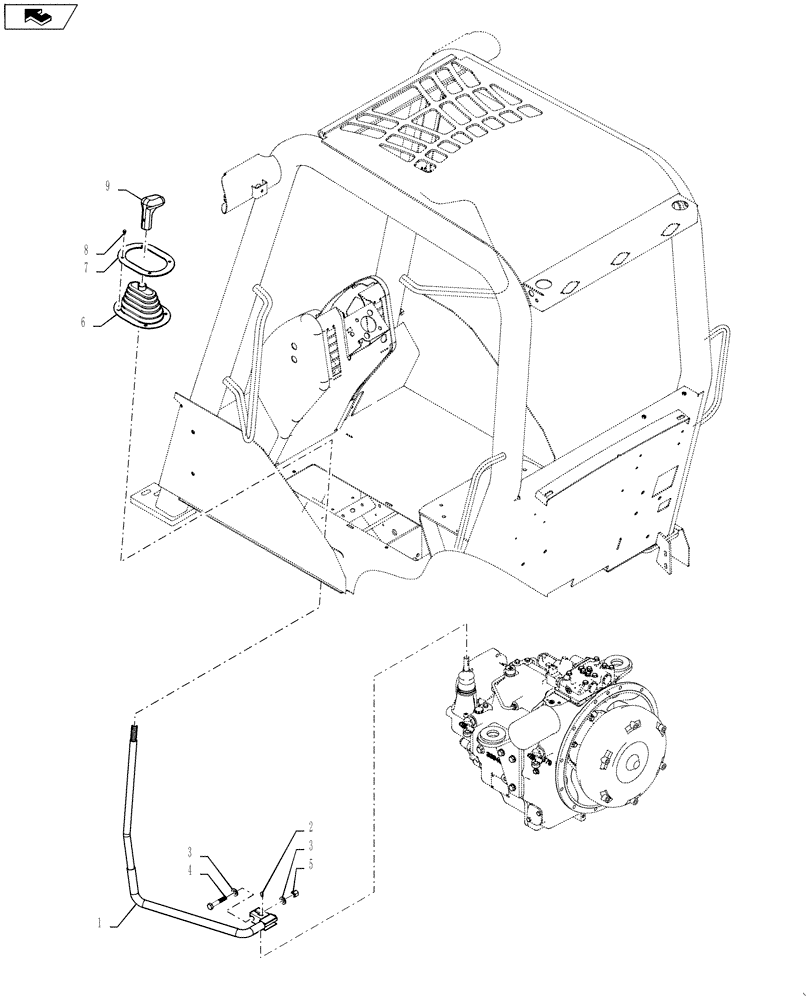

Запчасти Case 586H (21.133.01) - TRANSMISSION, SHIFT LEVER INSTALLATION (21) - TRANSMISSION

1

348559A2

LEVER

Forklift Shift

1шт.

2

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12

2шт.

4

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

6

353353A1

BOOT

Shift Lever

1шт.

7

353871A1

RETAINER

Ring Boot

1шт.

8

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

Self Tap

4шт.

9

331961A1

KNOB

Shift Knob

1шт.
