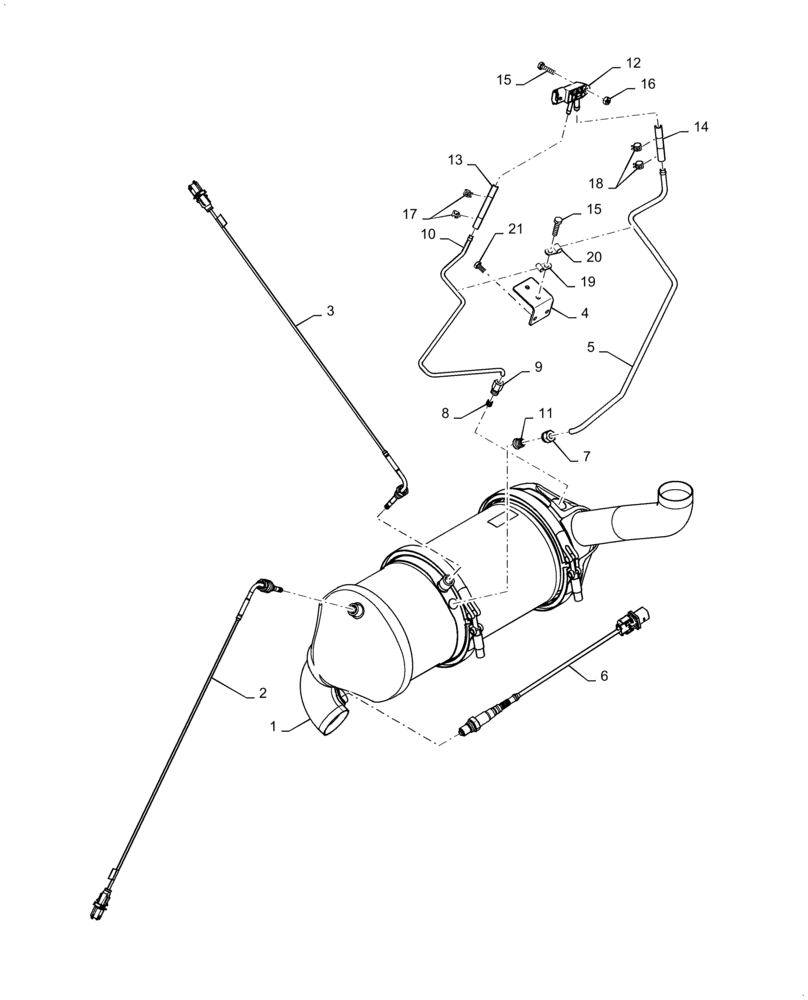

Запчасти Case 586H (10.989.01) - DIESEL PARTICULANT FILTER, SENSOR (10) - ENGINE

1

84541757

MUFFLER

Diesel Particulant Filter

1шт.

2

47478866

TEMPERATURE SENDER,35mm L

DPF Pre

1шт.

3

47478894

TEMPERATURE SENDER,50mm L

DPF Post

1шт.

4

84467680

BRACKET

Sensor Firewall

1шт.

5

84556984

PIPE

Right Hand

1шт.

6

84286040

SENSOR

Catalist

1шт.

7

335135

TUBE NUT,M14 x 1.5

1шт.

8

823634

HYD CONNECTOR

Cone Type 6mm

1шт.

9

3138527R1

TUBE NUT,Coupling, M12 x 1.5

1шт.

10

84527779

PIPE

Left Hand

1шт.

11

335136

FERRULE

Ring

1шт.

12

84286249

SENSOR

Delta Pressure

1шт.

13

84471568

HOSE

Left Hand Sensor

1шт.

14

84471567

HOSE

Right Hand Sensor

1шт.

15

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

16

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

17

84545613

CLAMP

Heater Hose

2шт.

18

84538538

CLAMP

Heater Hose

2шт.

19

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

1шт.

20

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

21

614-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

2шт.
