Запчасти Case 586H (55.101.05) - FRONT CONSOLE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

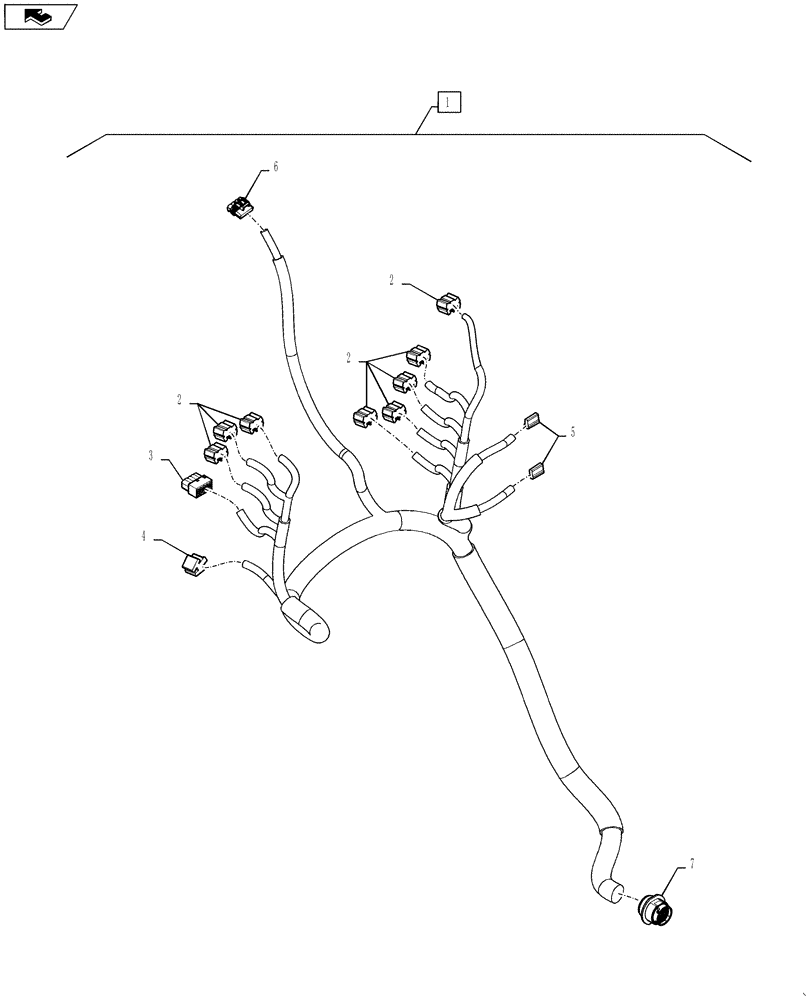

Схема запчастей Case 586H - (55.101.05) - FRONT CONSOLE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
home
4
2
6
2
1
2
7
5
3

Артикул

Название

Примечание

Количество

1

84526786

WIRE HARNESS

Front Console, Incl 2 - 7

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

Diff Lock Switch

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

4WD Switch

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

De-Clutch Switch

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

Horn Switch

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

Rear Worklights

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

Driving Lights Switch

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

Hazard Light Switch

1шт.

2

87697780

ELEC CONNECTOR,Female, 6 Cavities

Turn Light Switch

1шт.

3

84159859

ELEC CONNECTOR,Female, 10 Cavities

10 Cavity, SAHR Brake Switch

1шт.

4

87693713

ELEC CONNECTOR,Female, 6 Cavities

6 Cavity, Ignition Switch

1шт.

5

87697531

ELEC CONNECTOR,Female, 2 Cavities

Cigarette Lighter

2шт.

6

84146290

ELEC CONNECTOR

4 Cavity

1шт.

6

87686742

PLUG

1шт.

7

84146290

ELEC CONNECTOR

17 Cavity, To Main Harness

1шт.

Выбрано товаров: 15
