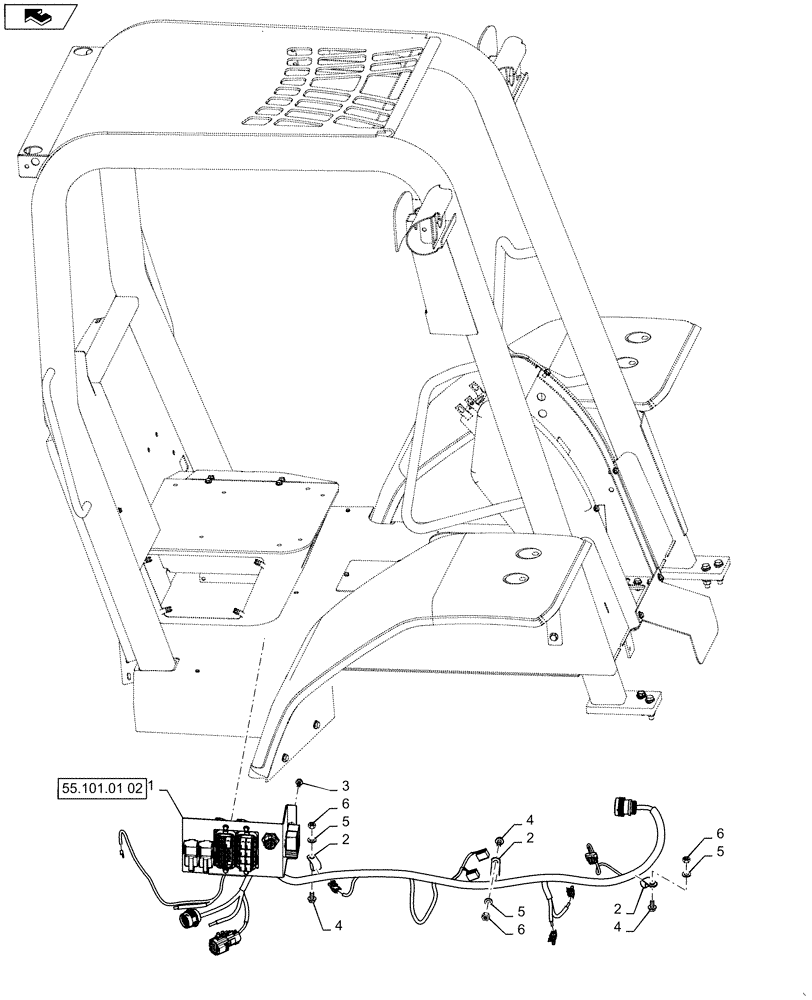

Запчасти Case 586H (55.100.04) - CAB HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84522727

WIRE HARNESS

Main Cab, See Fig. 55.101.01 (01) (02), Years: -01-JUN-13

1шт.

1

47489893

WIRE HARNESS

, Start Year: 01-JUN-13

1шт.

2

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

3шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

87015905

BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd

3шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

6

824-1410

NUT,M10, Cl 5

3шт.
