(35.740.03) - CYLINDER ASSEMBLY MAST LIFT 6000 LB 22 FEET

Запчасти Case 586H (35.740.03) - CYLINDER ASSEMBLY MAST LIFT 6000 LB 22 FEET (35) - HYDRAULIC SYSTEMS

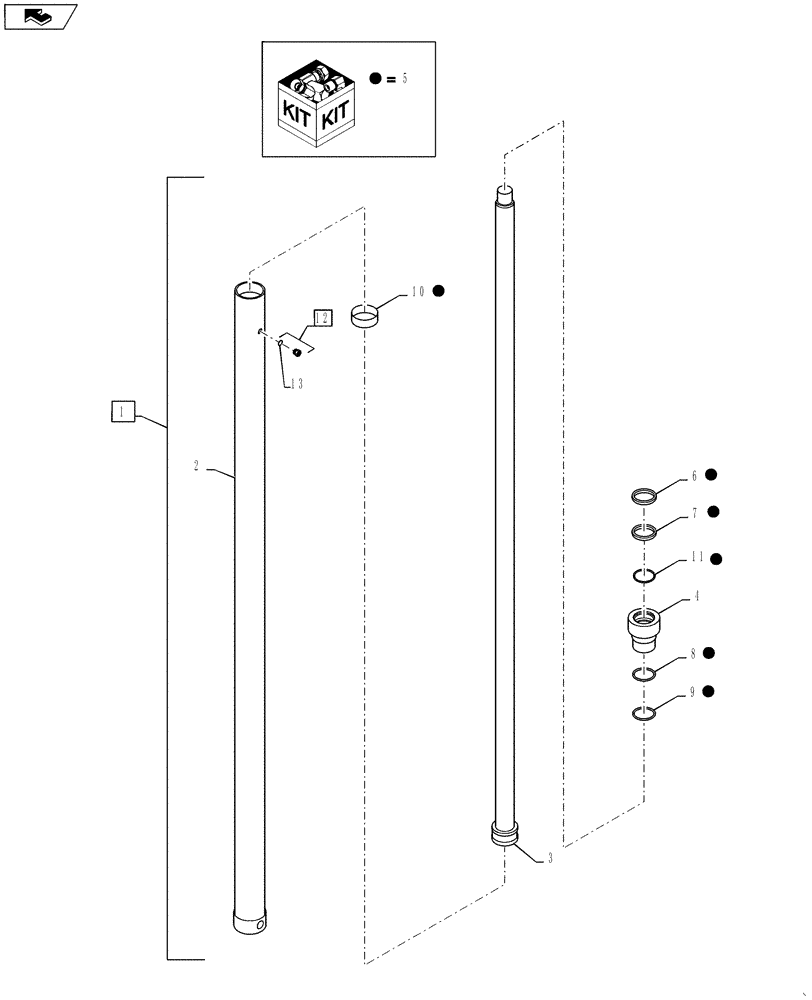

Схема запчастей Case 586H - (35.740.03) - CYLINDER ASSEMBLY MAST LIFT 6000 LB 22 FEET (35) - HYDRAULIC SYSTEMS
4
6
5
9
1
5
7
5
11
5
5
10
5
13
12
5
8
2
5
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

341153A1

CYLINDER ASSY.

Rail, Mast Lift, Incl 2 - 13

2шт.

2

NSS

NOT SOLD SEPARAT

Tube Incl in 1

1шт.

3

337773A1

PISTON ROD

Incl Piston

1шт.

4

360618A1

NUT

Gland

1шт.

5

362347A1

KIT

Seal, Incl 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Cup Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Back Up Ring Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

Wear Ring Incl in 5

1шт.

11

NSS

NOT SOLD SEPARAT

Buffer Seal Incl in 5

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

Incl 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

O-Ring Incl in 12

1шт.
