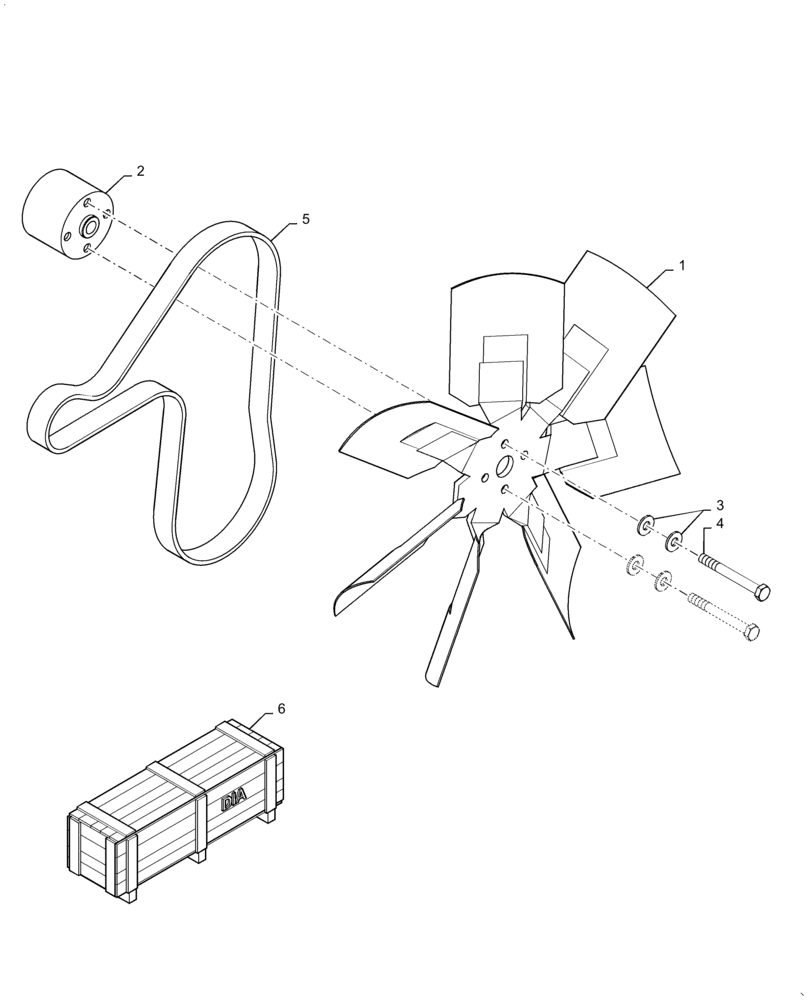

Запчасти Case 586H (10.414.AC[01]) - ENGINE FAN & BELT DRIVE (10) - ENGINE

1

185377A1

FAN,7 blade, 499mm, CW rotation

499mm

1шт.

1

84300083

FAN,7 Blade, CCW Rotation

Pusher

1шт.

2

87353191

SPACER

Fan

1шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

4

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

5

84522330

V-BELT,28.88mm W x 1453.2mm L, 8 Ribs

V Ribbed

1шт.

6

47668816

KIT

DIA Kit, Pusher Fan, Incl 1

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
