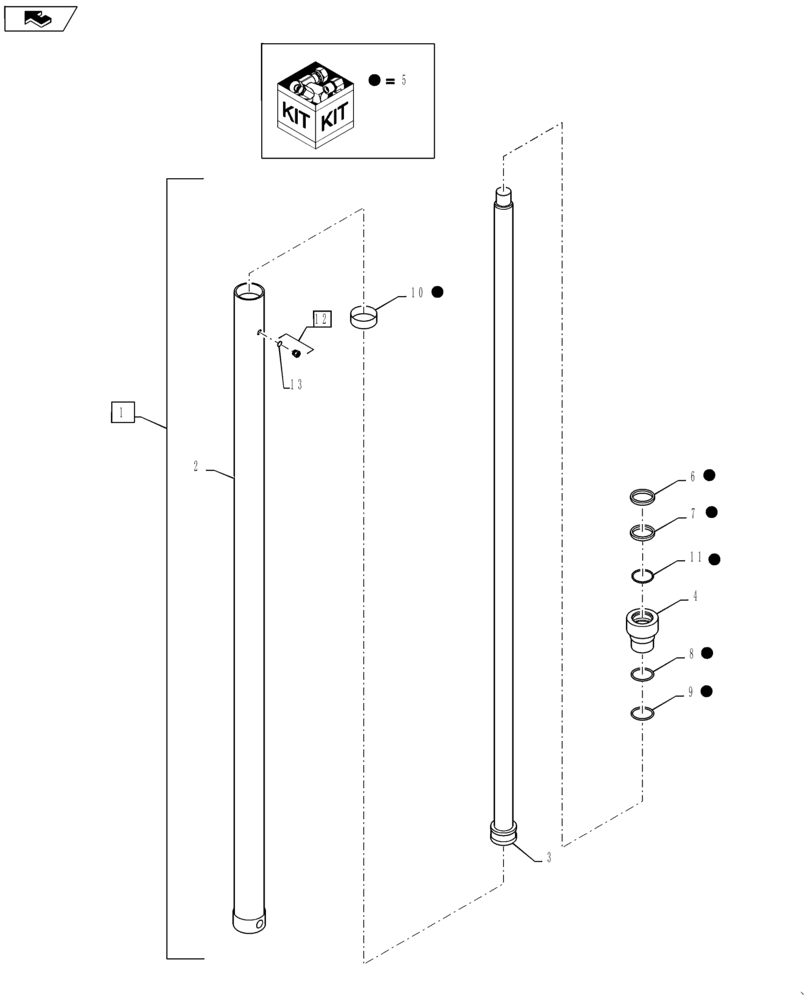

Запчасти Case 586H (35.740.AE[01]) - 6000 LB, 11 FT & 15 FT, 2 STAGE CYLINDER ASSY (35) - HYDRAULIC SYSTEMS

1

47735037

HYDRAULIC CYLINDER

Rail, Mast Lift, Incl 2 - 13

2шт.

2

337735A1

TUBE

Cylinder

1шт.

3

337736A1

PISTON ROD

1шт.

4

337737A1

NUT

Gland

1шт.

5

337742A1

KIT

Seal, Incl 6 - 11

1шт.

6

337744A1

WIPER

1шт.

7

337746A1

CUP

1шт.

8

337748A1

BACK-UP RING

1шт.

9

337747A1

O-RING

Back Up Ring

1шт.

10

337749A1

RING

1шт.

11

360611A1

SEAL

Buffer

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

Incl 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 12

1шт.
