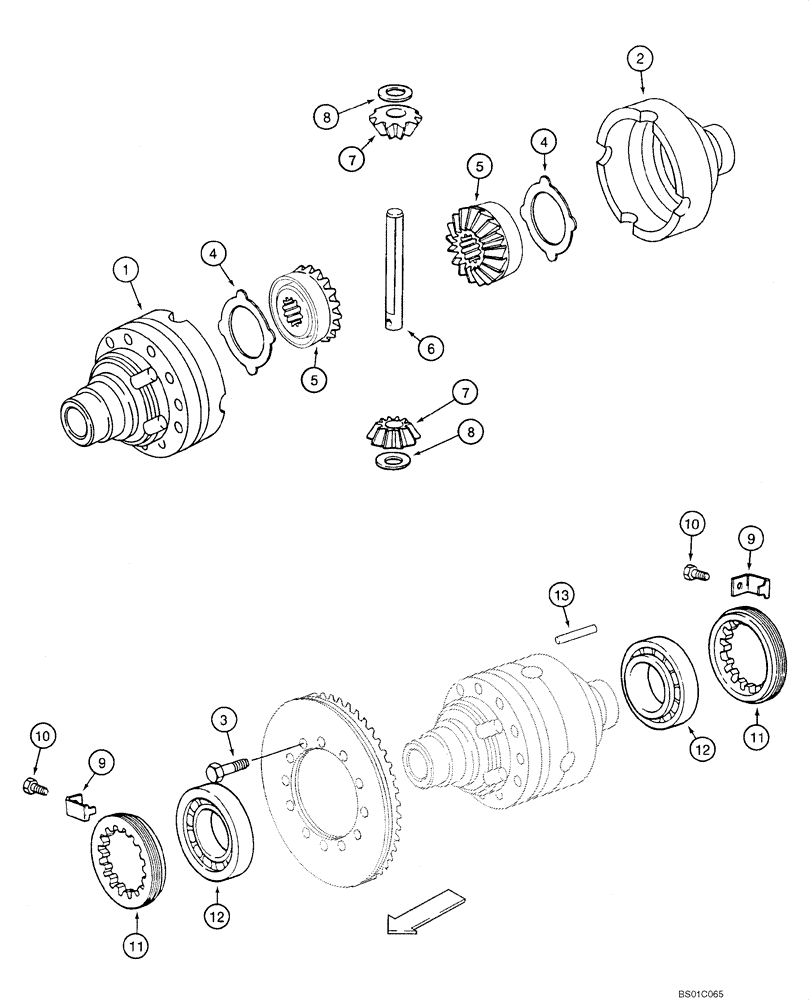

Запчасти Case 588G (06-07) - AXLE, REAR DRIVE (4WD) - DIFFERENTIAL (06) - POWER TRAIN

294933A1

HOUSING

Differential, Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

3

5194194

BOLT,Hex, M10 x 75

12шт.

4

1967003C1

THRUST WASHER

2шт.

B17575

FLUID

89 ml, Black RTV Silicone, Bolt to Differential Housing

1шт.

5

231397A1

SERVICE KIT

Differential, Service Replacement, Incl. 5 - 8, 13

1шт.

5

NSS

NOT SOLD SEPARAT

Gear, Side

2шт.

6

87712525

SHAFT

Pinion Gear Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Pinion Gear

2шт.

8

87712536

THRUST WASHER

2шт.

9

1966153C1

LOCKING PLATE

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

1966559C1

NUT

2шт.

12

K395027

TAPERED BEARING

2шт.

13

87712524

AXLE PIN

D7 x 40 Pin

1шт.

14

87395365

4WD AXLE ASSY

Rear, Incl. Parts On Figures 06-02 - 06-08; If Used; See Figure 06-01 For Remanufactured Axle Part Number

1шт.

14

87395365R

REMAN-AXLE DIFFERENT

586G, 588G, Both SERIES 3 FORKLIFT TIER 3

1шт.

14

87395365C

CORE-AXLE, MFD

Return Number

1шт.
