Запчасти Case 588G (06-03) - AXLE, REAR DRIVE (4WD) - HOUSING, SWIVEL (06) - POWER TRAIN

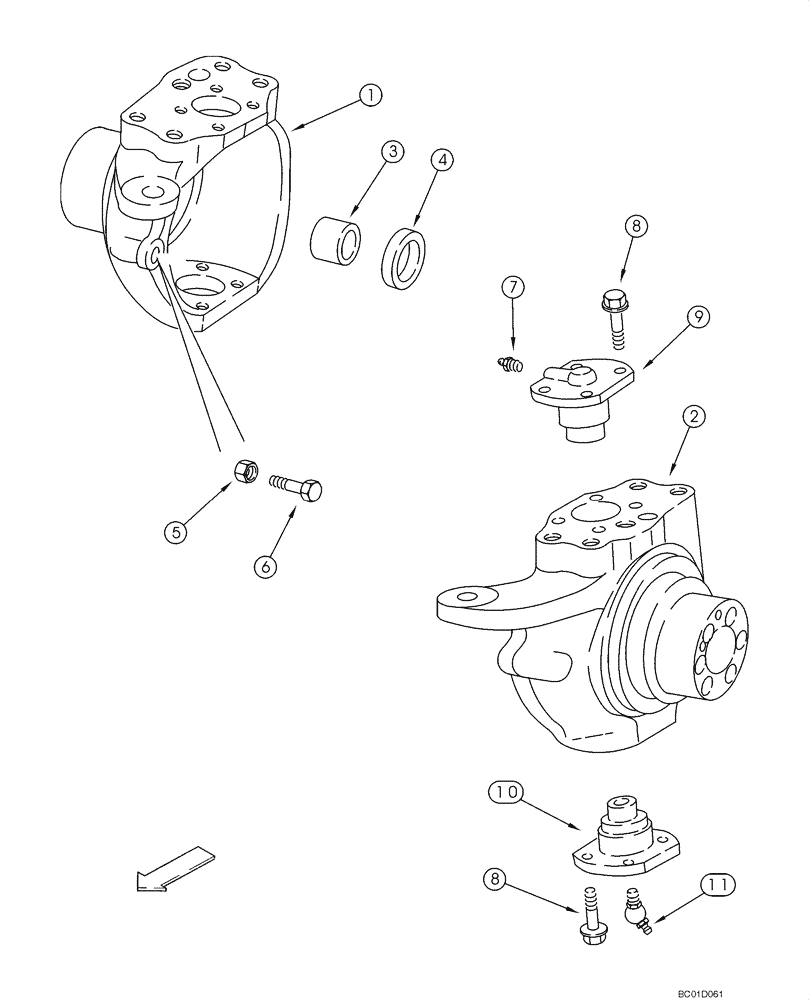

Схема запчастей Case 588G - (06-03) - AXLE, REAR DRIVE (4WD) - HOUSING, SWIVEL (06) - POWER TRAIN
11
10
2
9
8
7
3
6
1
5
4
8

Артикул

Название

Примечание

Количество

1

87395365

4WD AXLE ASSY

Rear, Incl. Parts on Figures 06-02 - 06-08; If Used; See Figure 06-01 For Remanufactured Axle Part Number

1шт.

1

87395365R

REMAN-AXLE DIFFERENT

586G, 588G, Both SERIES 3 FORKLIFT TIER 3

1шт.

1

87395365C

CORE-AXLE, MFD

Return Number

1шт.

1

87710156

STEERING KNUCKLE

Swivel

1шт.

2

87710159

STEERING KNUCKLE

Swivel

1шт.

3

100532A1

BUSHING

Used With Right-Hand or Left-Hand Swivel Housing, Not Included With Housing, Purchase Separately

2шт.

4

87710145

OIL SEAL

SEALRING

2шт.

5

85805986

NUT,M16

2шт.

6

5194264

BOLT

M16 x 75

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

8

100533A1

BOLT,Self-Lock, M12 x 30mm

M12 x 30

16шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King, Upper

2шт.

10

122264A1

PIN

Lower King

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.

B17575

FLUID

89 ml, Black RTV Silicone, Wear Ring to Swivel Housing

1шт.

Выбрано товаров: 15
