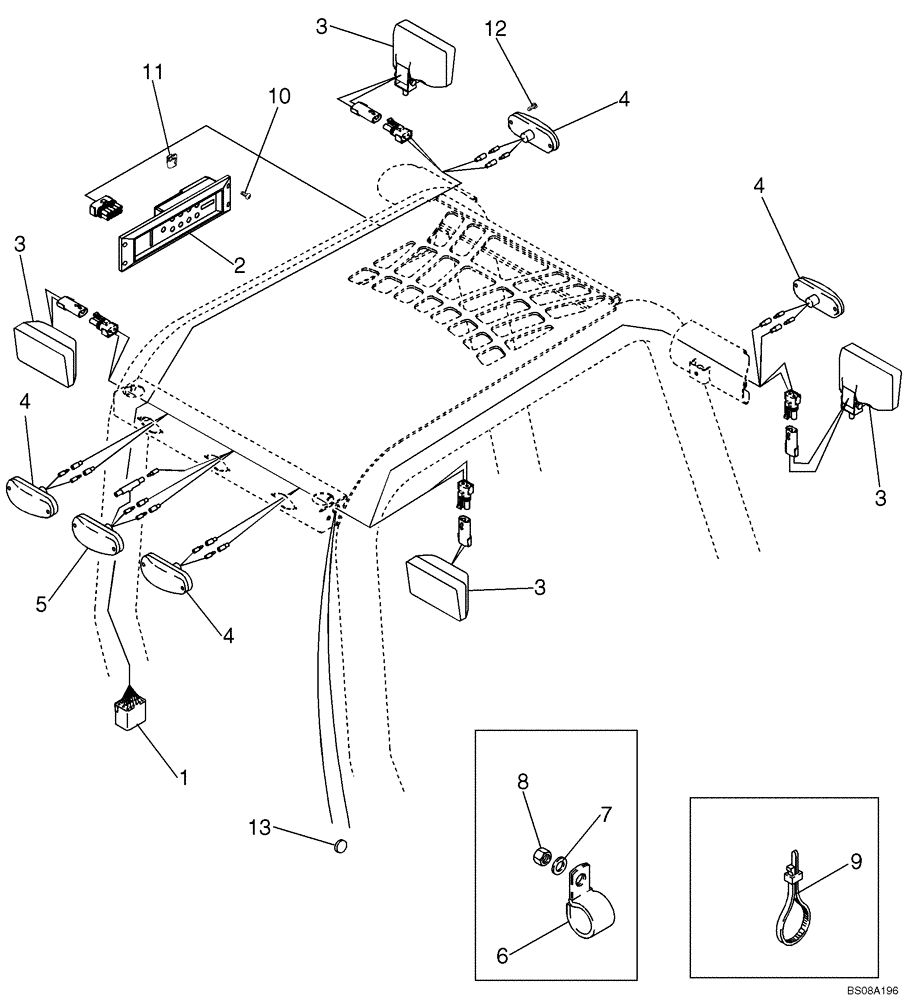

Запчасти Case 588G (04-10) - LAMPS, TRACTOR CANOPY - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

339360A2

HARNESS

ROPS

1шт.

2

326129A2

CLUSTER, INSTR.

CLUSTER, INSTRUMENT

1шт.

3

REF

INSTRUCTION

Lamp Assy, Flood, See Figure 04-11

4шт.

4

D135384

LAMP,12V

Turn Signal and Flasher, See Figure 04-12

4шт.

5

D121152

LAMP,12V

Stop And Tail, See Figure 04-12

1шт.

6

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 8 in

6шт.

10

85821534

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

140-106 SCREW PHD TYPE 1-10-24X.50

4шт.

11

86625077

SPRING NUT,J, Ret, #10-24

4шт.

12

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

10шт.

13

87369667

GROMMET

1 ID x 1-3/8 in Groove Diameter Grommet With Straight Split

2шт.
