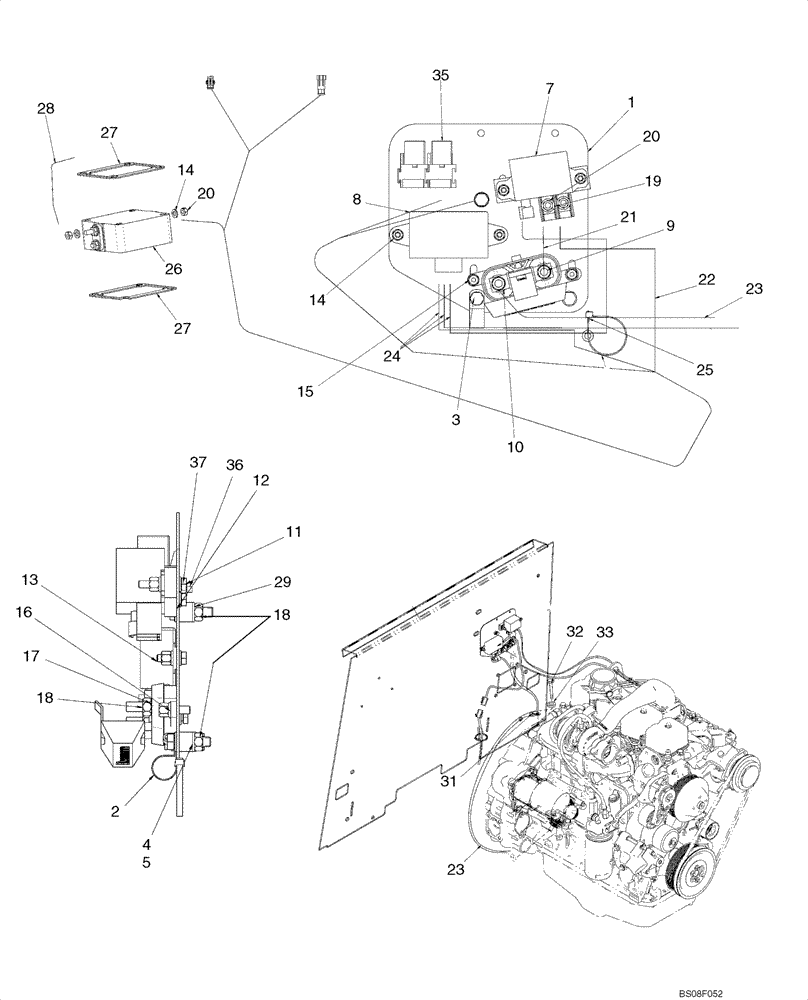

Запчасти Case 588G (04-06) - COLD START GRID HEATER (04) - ELECTRICAL SYSTEMS

1

87397601

BRACKET, SUPPORTING,2mm Thk

Cold Start Plate

1шт.

2

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

3шт.

7

86619908

RELAY,12V, 150A

Cold Start

1шт.

8

47132002

HEATER

Electronic Unit Controller, Grid Heater

1шт.

9

440038A1

JUNCTION BLOCK

Fuse Block

1шт.

10

87410602

FUSE,300A, Blade

300 amp Fuse

1шт.

11

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

12

87414237

PLATE,25mm W x 102mm L x 10mm Thk

10 mm Thick Spacer Bar

1шт.

13

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

13-14шт.

15

832-10406

NUT,M6 x 1, Cl 8

6шт.

16

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

17

892-11008

LOCK WASHER,8mm ID

2-5шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

21

87410265

BAR

90 mm Jumper Wire;, Serial Range: Fuse-Relay

1шт.

22

87419616

CABLE ASSY.

500 mm Wire; Relay to Grid Heater

1шт.

23

87419615

CABLE ASSY.

1250 mm Wire; Starter to Fuse Block

1шт.

24

87396228

WIRE HARNESS

Cold Start Control

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7" - 8"

1шт.

26

82017872

HEATER

Grid

1шт.

27

86014151

GASKET,93mm L x 98mm L

2шт.

28

87413162

GROUND STRAP

150 mm, Grid Heater Ground

1шт.

29

895-10008

WASHER,M8 x 16 x 1.6

5шт.

31

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

32

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

33

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

35

87436836

RELAY,12V, 40 Amp

Mini, 12V, 40A; Engine Crank

2шт.

36

87301687

SCREW,HWH, #10 - 32 x 1/2"

2шт.

37

231-24409

NUT,#10-32

2шт.
