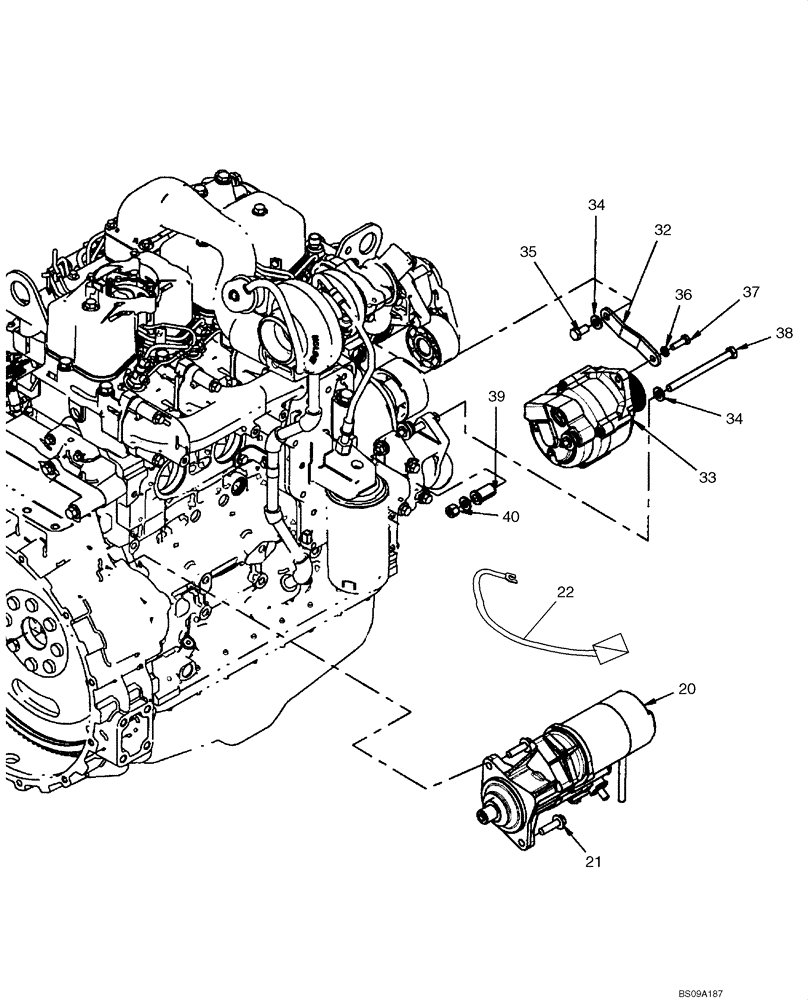

Запчасти Case 588G (04-03) - STARTER MOUNTING - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

20

86992395

STARTER MOTOR,12V, 2.7kW

See Figure 04-01

1шт.

20

86992395R

REMAN-STARTER,12V, 2.7kW

Remanufactured, STARTER

1шт.

20

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

21

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

22

87433401

ELECTRIC CABLE

Starter Solenoid Jumper

1шт.

32

87452258

SECURING STRAP

If Used

1шт.

33

87422777

ALTERNATOR,12V, 90A, W/ Pulley

See Figure 04-02

1шт.

33

87422777R

REMAN-ALTERNATOR

12V, 90A

1шт.

33

87422777C

CORE-ALTERNATOR

Return Number

1шт.

34

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

35

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

36

892-11008

LOCK WASHER,8mm ID

1шт.

37

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

38

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

39

87452257

SPACER

1шт.

40

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
