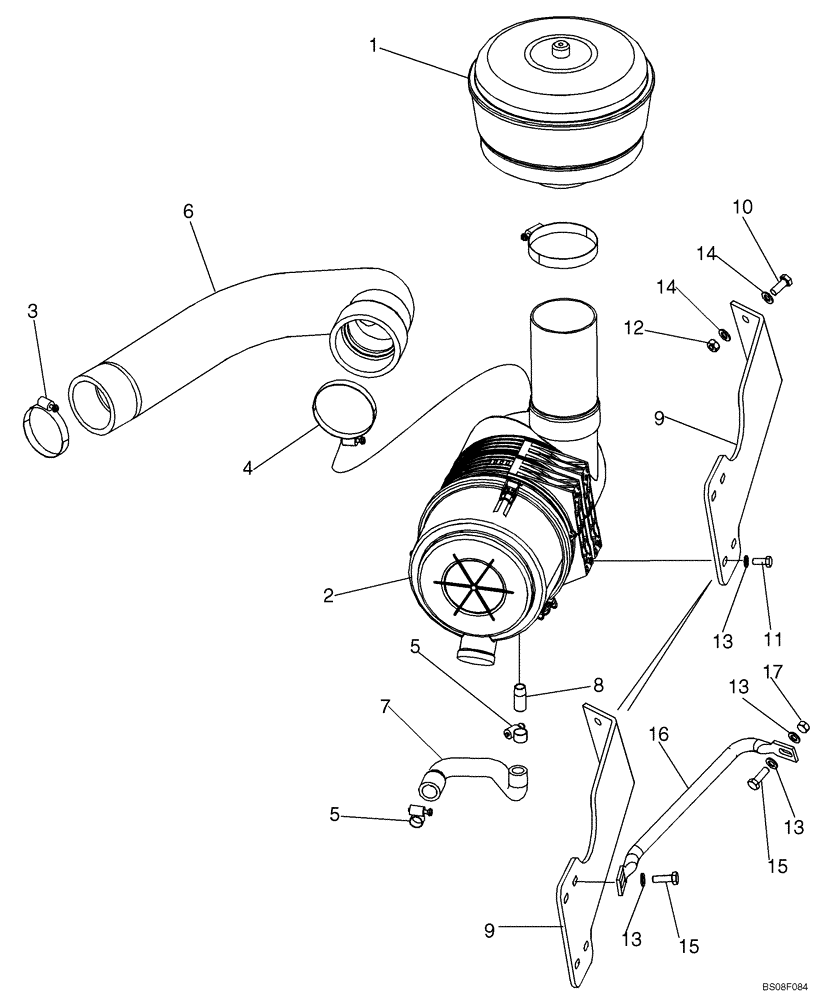

Запчасти Case 588G (02-03) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

228120A1

PRECLEANER

See Figure 02-04

1шт.

2

87687176

AIR CLEANER

See Figure 02-04

1шт.

3

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

4

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

6

87687151

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID x 300.00 mm, SAE J20

Turbo Air Cleaner

1шт.

7

87687152

HOSE,17.00 mm ID, 22.00 mm ID x 113.30 mm, SAE J30R6

CCV

1шт.

8

L17985

FITTING,3/8" - 18 NPT

1шт.

9

87481848

BRACKET, SUPPORTING

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

895-10008

WASHER,M8 x 16 x 1.6

6шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

87475883

BRACKET, SUPPORTING

Muffler

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
