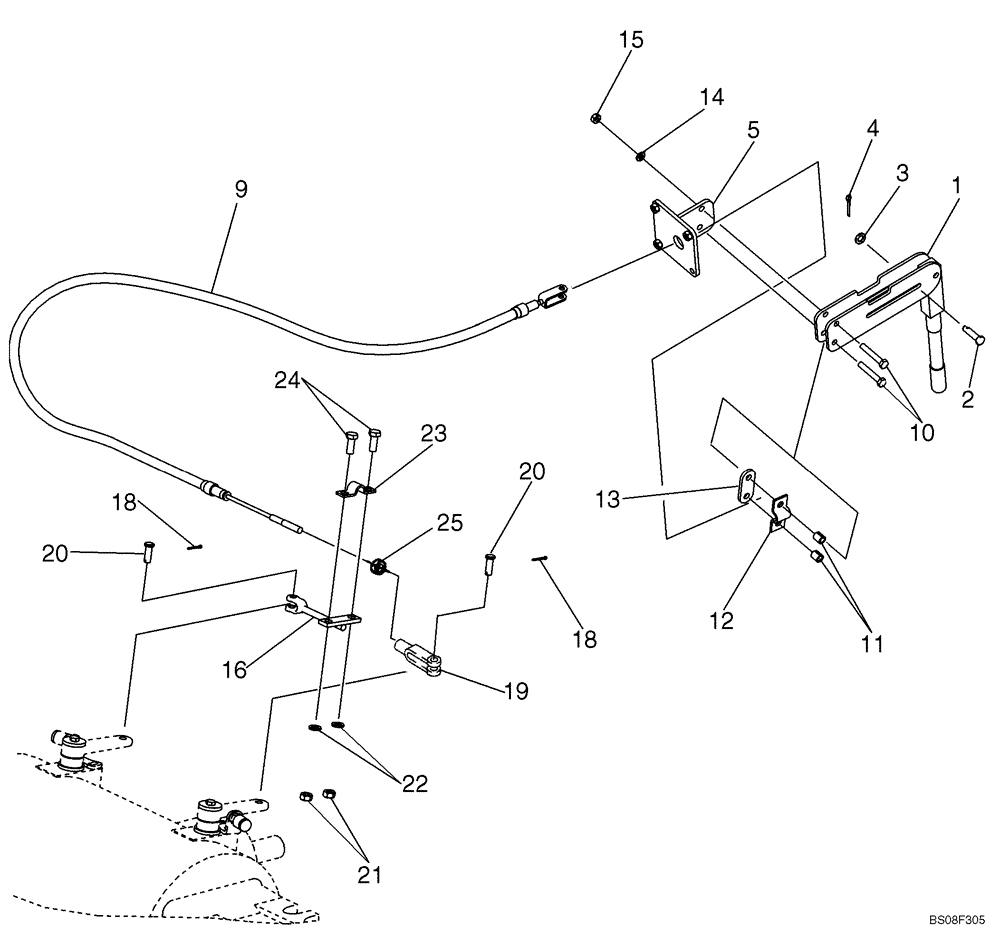

Запчасти Case 588G (07-10) - CONTROLS - BRAKE, PARKING (07) - BRAKES

279261A2

LEVER

Parking Brake, Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Lever

1шт.

2

NSS

NOT SOLD SEPARAT

Pin, Clevis

1шт.

3

495-21038

WASHER,5/16"

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

1шт.

5

337282A1

BRACKET

1шт.

9

337216A1

CABLE,2010mm L

1325 mm (52-3/16 in), Parking Brake

1шт.

10

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

11

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

2шт.

12

D121608

CLAMP

1шт.

13

D129747

PLATE

1шт.

14

892-11008

LOCK WASHER,8mm ID

2шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

16

326348A1

SUPPORT

151 mm (6 in)

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

2шт.

19

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

20

D149288

PIN,8.33mm OD x 30.66mm L

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

A188028

CLAMP

1шт.

24

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

25

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.
