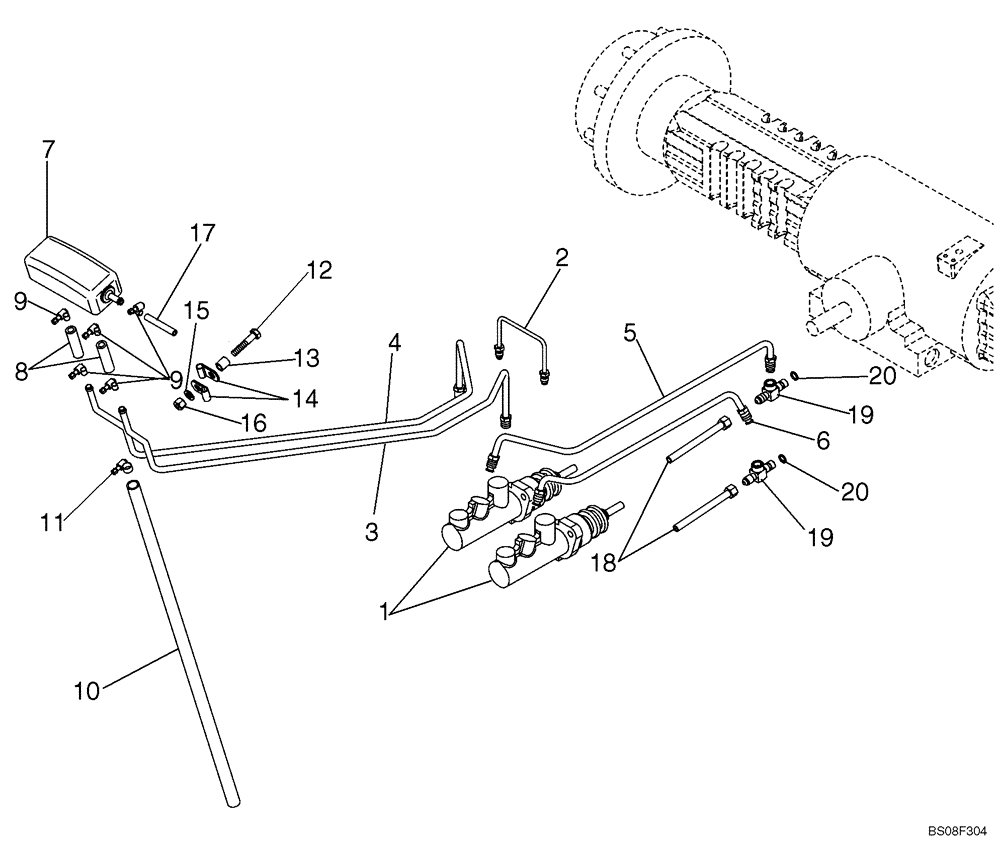

Запчасти Case 588G (07-08) - HYDRAULICS - BRAKES, MASTER (07) - BRAKES

1

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER,MASTER See Figure 07-09

2шт.

2

D136430

TUBE

1шт.

3

353108A1

TUBE

1шт.

4

353110A2

TUBE

1шт.

5

356770A1

TUBE

Brake, Left Hand

1шт.

6

356772A1

TUBE

Brake, Right Hand

1шт.

7

184627A2

BRAKE FLUID TANK

1шт.

8

121729A1

HOSE,7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

Reservoir to Master Cylinder

2шт.

9

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

10

353834A1

HOSE

650 mm (25-1/2 in), Brake Reservoir Return

1шт.

11

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

1шт.

12

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

13

D150633

SPACER,8.7mm ID x 12.7mm OD x 14mm W

1шт.

14

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

17

131676A1

HOSE,7.94mm ID x 1590mm L

1590 mm (62-5/8 in), Filter to Brake Reservoir, See Figure 08-01

1шт.

18

322184A1

HOSE ASSY.

480 mm (18-15/16 in), Production Only; For Service, Order 142007A1

2шт.

18

142007A1

HOSE,6.35mm ID x 625mm L

625 mm (24-5/8 in)

2шт.

19

222889A1

FITTING

Incl. 20

2шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

D138955

SWITCH

Brake Light Pressure Switch (Not Illustrated) (See Fig 04-07)

2шт.
