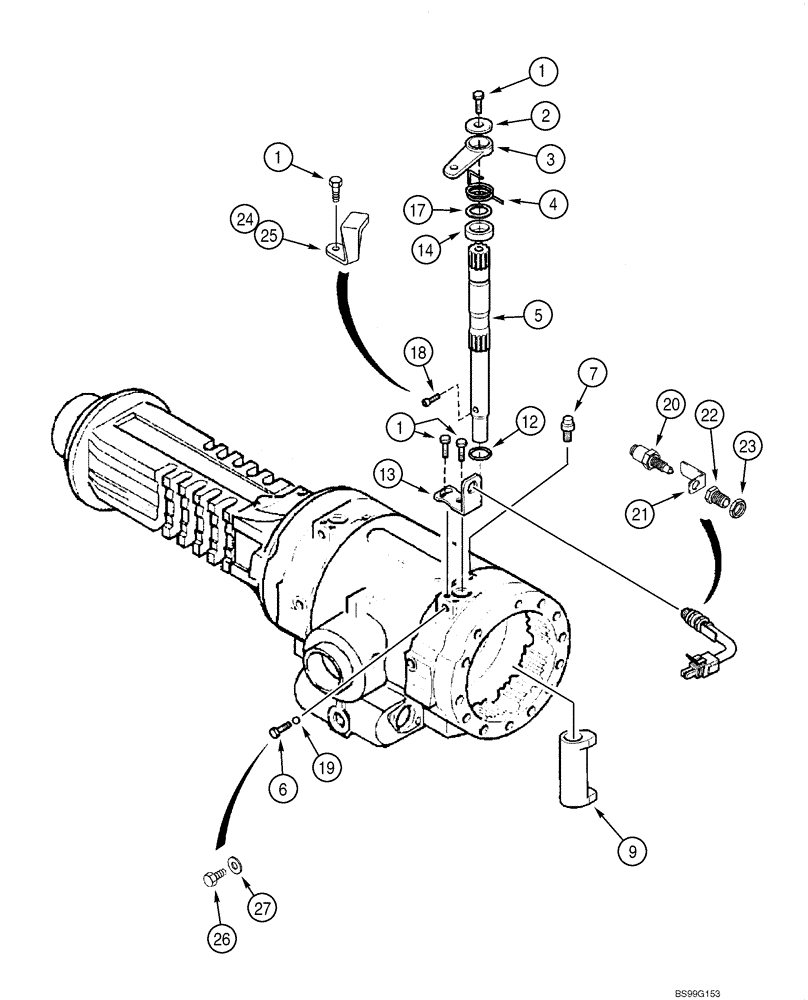

Запчасти Case 588G (07-02) - AXLE, FRONT DRIVE - BRAKE, PARKING (07) - BRAKES

1

190451A1

LOCK BOLT,M8 x 20mm

M8 x 20

6шт.

1a

87422891

AXLE, REAR

AXLE REAR Incl. Figure 06-25 - 06-29, 07-01, 07-02; Four Spider Differential

1шт.

1a

87422891R

REMAN-REAR AXLE

Remanufactured, Rear, 4 Spider Differential

1шт.

1a

87422891C

CORE-REAR AXLE

Return Part Number Rear, 4 Spider Differential

1шт.

1a

384952A1R

REMAN-AXLE

Reman For New P/N 87422891

1шт.

1a

384952A1C

CORE-AXLE

Return Part Number Four Spider Differential

1шт.

2

190463A1

WASHER

2шт.

3

280436A1

LEVER

2шт.

4

190476A2

SPRING

Right-Hand

1шт.

4

190477A2

SPRING

Left-Hand

1шт.

5

308040A1

SHAFT

2шт.

6

283462A1

BOLT

M8 x 23.5

2шт.

7

E135810

VENTING SCREW

Brake Bleeder

2шт.

9

196085A1

CAM

2шт.

12

321183A1

O-RING

2шт.

13

256478A1

SUPPORT

Stop

2шт.

14

256481A1

SPACER

2шт.

17

256482A1

SHIM

2шт.

18

256485A1

BOLT

M6 x 16

2шт.

19

283466A1

BALL

2шт.

281952A1

KIT

Switch, Incl. 20 - 23

2шт.

20

280450A1

PARK BRAKE SWITCH

1шт.

21

280452A1

BRACKET

1шт.

22

280457A1

LEVER

1шт.

23

281960A1

NUT

1шт.

279645A1

PACKAGE, REPAIR

Parking Brake, External Adjustment Parts, Incl. Instructions, Incl. 1, 12 - 17, 281952A1, 20 - 23, 24 - 27

1шт.

24

259254A1

RETAINER

Right-Hand

1шт.

25

280443A1

RETAINER

Left-Hand

1шт.

26

514-634

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

M8 x 16

2шт.

27

181104A1

COPPER WASHER

Copper

2шт.
