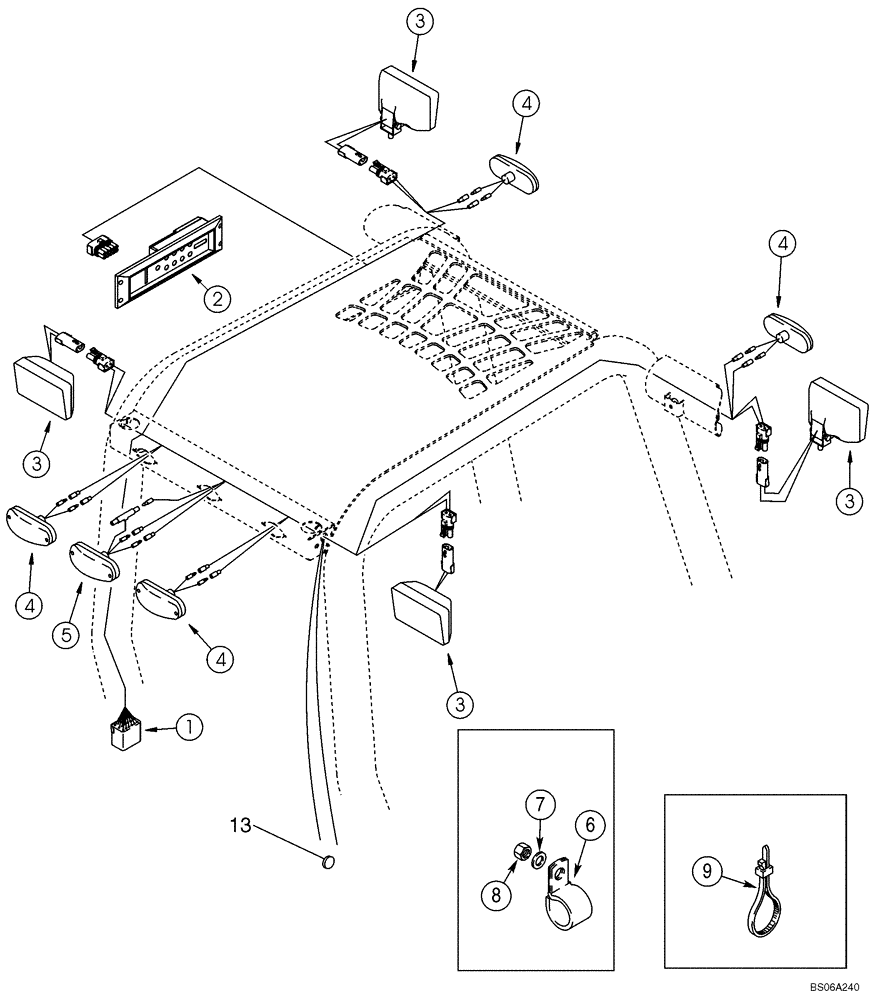

Запчасти Case 588G (04-10) - LAMPS, TRACTOR CANOPY - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

339360A2

HARNESS

ROPS

1шт.

2

326129A2

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Replaces 326129A1

1шт.

3

REF

INSTRUCTION

Lamp Assy, Flood, See Figure 04-11

4шт.

4

D135384

LAMP,12V

Turn Signal and Flasher, See Figure 04-12

4шт.

5

D121152

LAMP,12V

Stop And Tail, See Figure 04-12

1шт.

6

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

10

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

10 x 1/2, Stainless Steel; Instrument Cluster Mounting, Not Illustrated; Replaces 140-106 Non-Stainless Steel Screw Used On Some Models

4шт.

11

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

Instrument Cluster Mounting, Not Illustrated

4шт.

87422907

SERVICE KIT

Instrumen Cluster Harness, Includes 12, Instructions, If Used, Not Illustrated; SN JJG0292018 -

1шт.

12

87411971

WIRE HARNESS

Jumper, Not Illustrated

1шт.

13

87369667

GROMMET

1 ID x 1-3/8 in Groove Diameter Grommet With Straight Split; Replaces (2) 257279A1 7/8 ID x 1-1/4 in. Groove Diameter Straight Split Grommet Used On Some Models

2шт.
