(02-15) - CAMSHAFT, 4-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case 588G (02-15) - CAMSHAFT, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

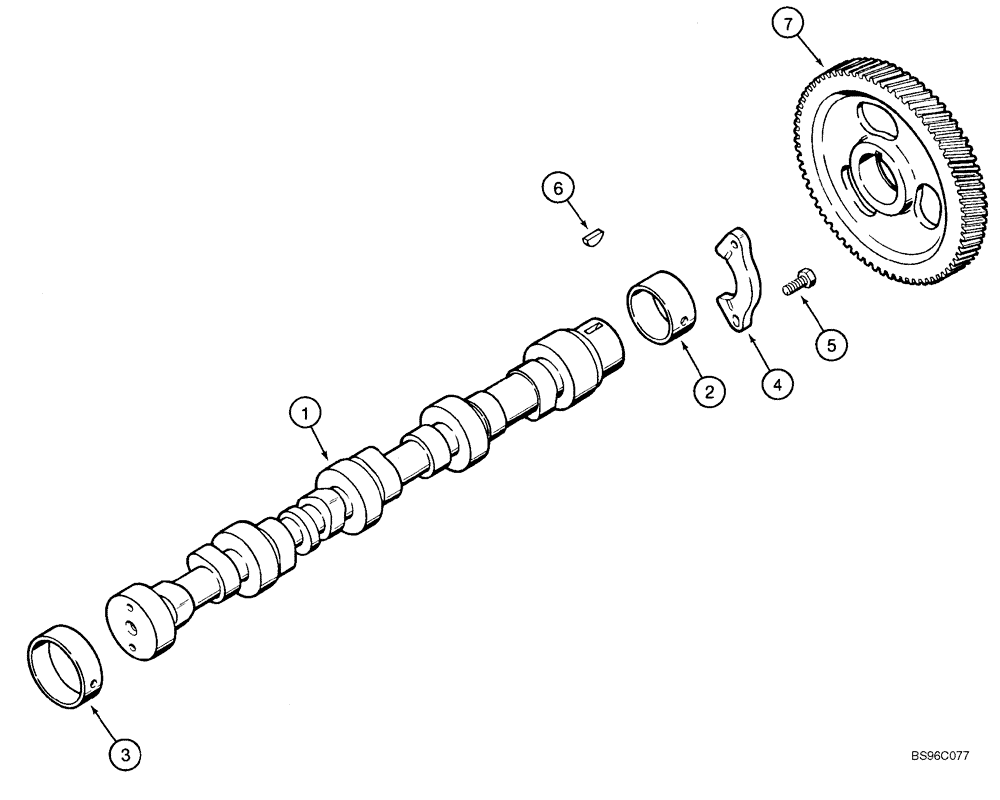

Схема запчастей Case 588G - (02-15) - CAMSHAFT, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
7
4
5
6
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4-390 Emissions Certified Engine

1шт.

1

J929039

CAMSHAFT

1шт.

J929039R

REMAN-CAMSHAFT

585G, 586G, 588G

1шт.

J929039C

CORE-CAMSHAFT

Return Number

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

Front

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

Intermediate And Rear, Service Repair Only

4шт.

4

J927155

SUPPORT

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

7

J929028

GEAR

Replaces J929030

1шт.
