Запчасти Case 588G (09-33A) - DECALS - CANADIAN FRENCH (09) - CHASSIS

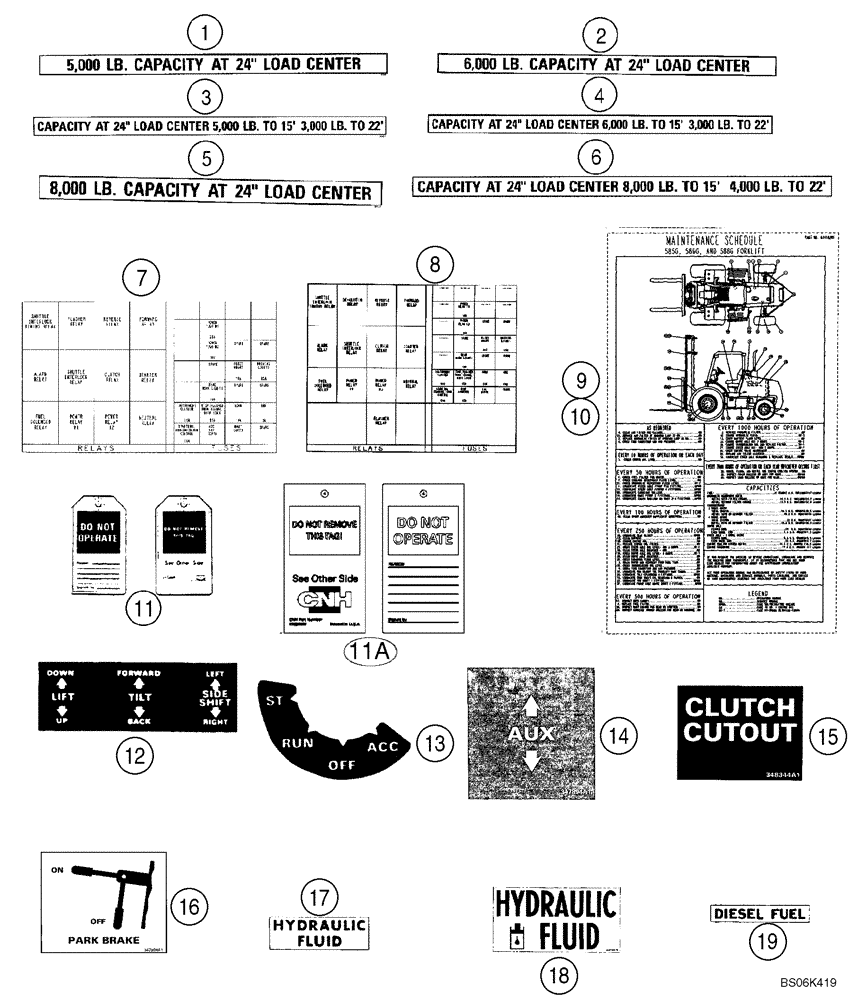

Схема запчастей Case 588G - (09-33A) - DECALS - CANADIAN FRENCH (09) - CHASSIS
12
15
19
8
3
18
17
10
2
14
6
4
7
13
9
1
5
11a
11
16

Артикул

Название

Примечание

Количество

1

431663A1

DECAL

Capacity

1шт.

2

431665A1

DECAL

Capacity

1шт.

3

431667A1

DECAL

Capacity

1шт.

4

431669A1

DECAL

Capacity

1шт.

5

431671A1

DECAL

Capacity

1шт.

6

431673A1

DECAL

Capacity

1шт.

7

NSS

NOT SOLD SEPARAT

431675A1 Fuse and Relay Decal, No Longer Used

1шт.

8

431677A1

DECAL

Fuse and Relay, If Used

1шт.

9

431220A1

DECAL

Maintenance Schedule, Supplied by Parts and Components, Used With 2WD Rear Axle D138954

1шт.

10

87412014

DECAL

Maintenance Schedule, Supplied by Parts and Components

1шт.

11

321-5675

TAG

TAG, Do Not Operate; If Used

1шт.

11a

87380558

TAG

TAG, Do Not Operate; If Used

1шт.

12

431680A1

DECAL

Lift / Tilt / Sideshift Control

1шт.

13

431683A1

DECAL

Ignition

1шт.

14

NSS

NOT SOLD SEPARAT

431685A1 Auxiliary Control Decal, No Longer Used

1шт.

15

431687A1

DECAL

Clutch Cutout Override

1шт.

16

431689A1

DECAL

Park Brake

1шт.

17

398666A1

DECAL

Hydraulic Fluid, No Longer Available, Order 321-6376

1шт.

18

321-6376

DECAL

Hydraulic Fluid, English Decal Only

1шт.

19

398668A1

DECAL

Diesel Fuel

1шт.

Выбрано товаров: 20
