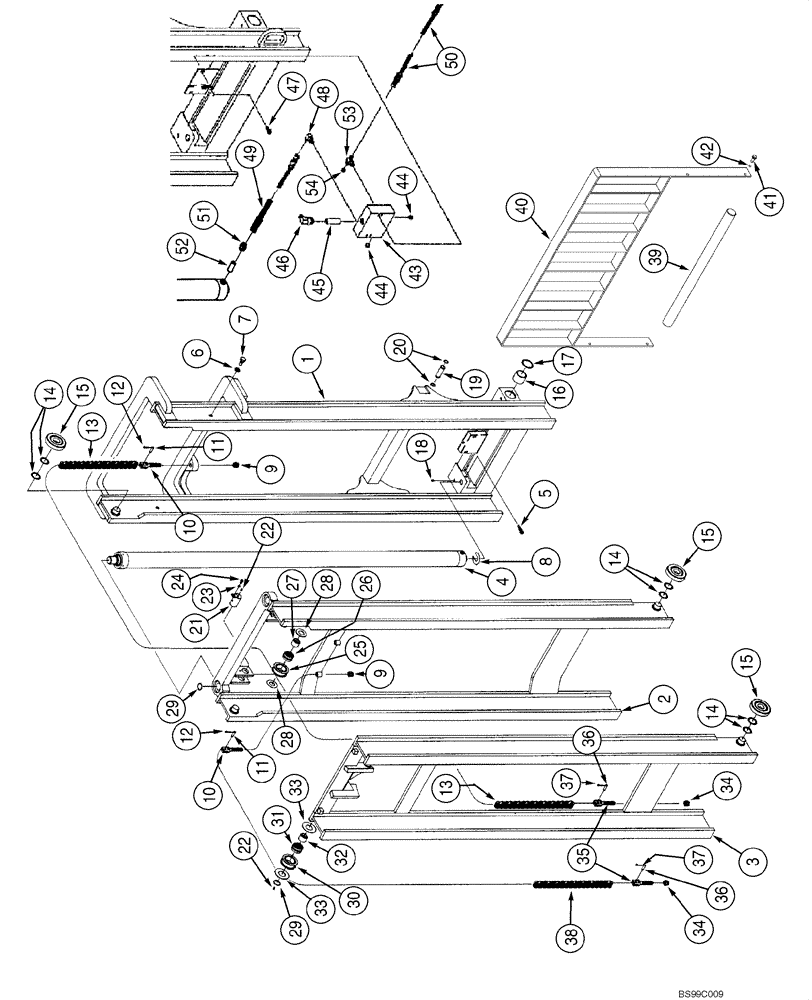

Запчасти Case 588G (09-16) - MAST - 8000 LB (09) - CHASSIS

356494A2

KIT

KIT, MAST ASSY 8K 22' 84" SHAFT MAST, Incl 324498A3

1шт.

324498A3

MAST ASSEMBLY

6,6 M (22 ft), Shaft, Incl. 1 - 38, 43 - 55, Also Incl. 09-17

1шт.

337779A1

RAIL ASSY.

Incl. 1 - 38, 43 - 55

1шт.

1

337780A1

RAIL

Outer

1шт.

2

337781A1

RAIL

Intermediate

1шт.

3

337782A1

RAIL

Inner

1шт.

4

337689A1

CYLINDER ASSY.

Rail, See Figure 08-07C

2шт.

5

339777A1

BOLT

2шт.

6

492-11075

LOCK WASHER,3/4"

2шт.

7

339778A1

BOLT

2шт.

8

339786A1

SHIM

0,76 mm (0,03 in)

1шт.

363168A1

CHAIN (CE)

Incl. 9 - 13, Replaces 339823A1

2шт.

9

231-24416

LOCK NUT,1"-14, G5

4шт.

10

339781A1

ANCHOR

Chain

4шт.

11

339782A1

PIN

4шт.

12

339784A1

PIN, SPLIT (COTTER)

PIN, COTTER

8шт.

13

363158A1

CHAIN (AG)

2шт.

14

337606A1

SHIM

0,76 mm (0,03 in)

1шт.

15

337607A1

ROLLER

Load

8шт.

16

339787A1

BUSHING

2шт.

17

103-21300

SNAP RING,3.00", Int, #300

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

19

339789A1

PIN

2шт.

20

103-11125

SNAP RING,#125, Ext

4шт.

21

339805A1

PIN, ROLL

Chain Roller

2шт.

22

219-14

LUBE NIPPLE,1/4" NPTF

4шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

25

339806A1

ROLLER

Chain

2шт.

26

339808A1

BALL BEARING

2шт.

27

339810A1

RACE

Inner

2шт.

28

339811A1

THRUST WASHER

4шт.

29

100-11175

SNAP RING,#175, Ext

4шт.

30

339814A1

SHEAVE

2шт.

31

339816A1

BALL BEARING

2шт.

32

339817A1

RACE

Inner

2шт.

33

339818A1

THRUST WASHER,44.45mm ID x 88.9mm OD x 4.76mm Thk

4шт.

339822A1

CHAIN (CE)

Incl. 34 - 38

2шт.

34

231-24412

LOCK NUT,3/4"-16, GB

4шт.

35

339819A1

ANCHOR

Chain

4шт.

36

339820A1

PIN

4шт.

37

432-612

COTTER PIN,3/32" x 3/4"

8шт.

38

339821A1

CHAIN (AG)

2шт.

39

329457A1

SHAFT

Pivot,Mast

1шт.

40

329795A1

BACKREST,1524mm (60 inch)

Load

1шт.

41

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

42

492-11062

BEARING WASHER,5/8"

4шт.

43

337776A1

BLOCK

For Attaching Hose(s), See Figure 08-03, See Olofsson dealer for service of the manifold valve on all masts.

1шт.

44

339834A1

PLUG

2шт.

45

352972A1

VALVE

1шт.

46

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 237-6012

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

47

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

Mounting

2шт.

48

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

Incl. 237-6002

2шт.

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

49

337777A1

HOSE

Right Hand

1шт.

50

337778A1

HOSE

Left Hand

1шт.

51

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 237-6010

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

52

352973A1

LIMITER, TRAVEL

LIMITER Right Hand Side

1шт.

53

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 237-6008

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

54

218-755

CAP,37 Degree, 3/4"-16

1шт.

55

218-755

CAP,37 Degree, 3/4"-16

1шт.
