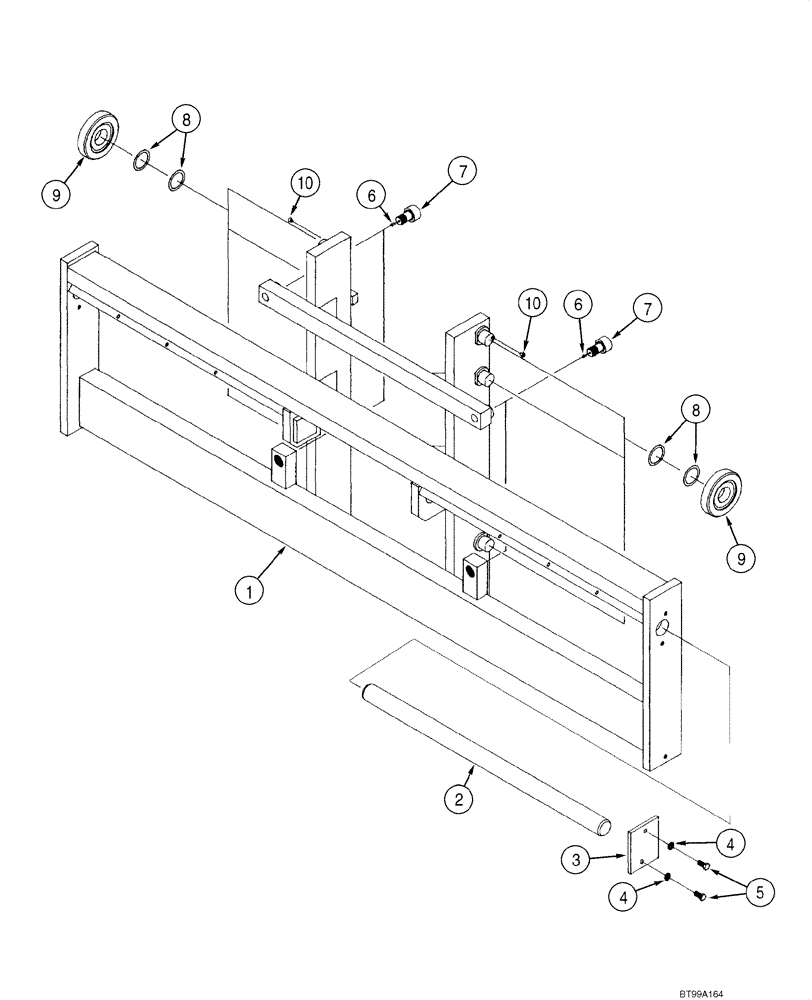

Запчасти Case 588G (09-13) - MAST, SHAFT FRAME - 8000 LB (09) - CHASSIS

324496A3

MAST ASSEMBLY

4,5 M (15 ft), Shaft, Incl. 1 - 10, Also Incl. Parts On Figure 09-12

1шт.

2133.6 mm (84 in) SHAFT FRAME

1шт.

339887A1

CARRIER

Shaft, Incl. 1 - 10

1шт.

1

339879A1

CARRIER

2133,6 mm (84 in), Shaft

1шт.

2

339880A1

SHAFT

2шт.

3

337651A1

CAP

Shaft

2шт.

4

492-11062

BEARING WASHER,5/8"

4шт.

5

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

6

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

7

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

8

337606A1

SHIM

0,76 mm (0,03 in)

1шт.

9

337607A1

ROLLER

Load

6шт.

10

61-4256

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/8"

1/4 x 3/8

2шт.
