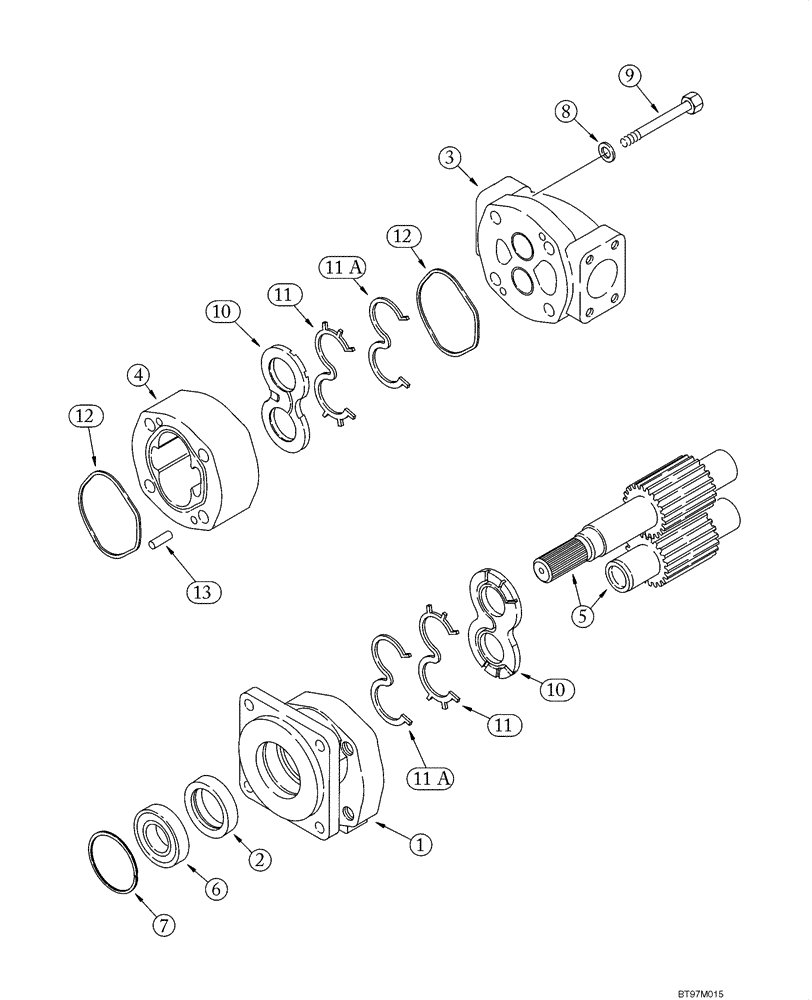

Запчасти Case 588G (08-11A) - PUMP ASSY, 588G (08) - HYDRAULICS

315830A1

PUMP

Hydraulic; 588G Forklift Only; Incl. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Cover; Shaft End

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

Shaft

1шт.

3

NSS

NOT SOLD SEPARAT

Cover; Closed End

1шт.

4

NSS

NOT SOLD SEPARAT

Housing; Gear; Shaft End

1шт.

5

NSS

NOT SOLD SEPARAT

Gear, Set

1шт.

6

18-970

BALL BEARING

Ball

1шт.

7

102-23206

SNAP RING,#206, 2.190", Int, Spiral

Ring, Retaining No. 206

1шт.

8

19-488

WASHER

11/16 X 1-11/32 X 3/16

4шт.

9

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

4шт.

10

N13582

THRUST PLATE

2шт.

11

144173A1

SEAL

2шт.

11a

178051A1

BACK-UP RING

Seal

2шт.

12

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

2шт.

13

W16323

DOWEL

Pin

4шт.

341552A1

SEAL KIT

Seal; Incl. 2, 11, 11A, 12

1шт.
