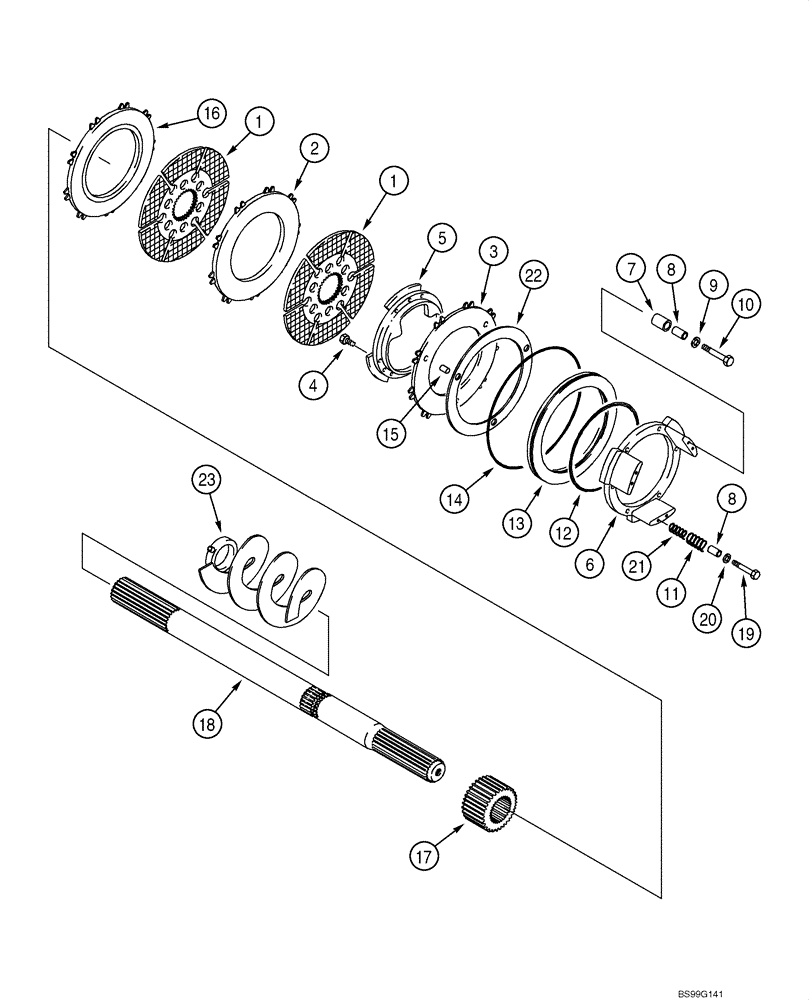

Запчасти Case 588G (07-01) - AXLE, FRONT - BRAKE, DIFFERENTIAL (07) - BRAKES

279172A1

AXLE, REAR

AXLE REAR Front Drive, Incl. Figure 06-53 - 06-57, 07-01 - 07-02, No Longer Available, Order 319063A1, See Figure 06-58, Also Order 213-126, 322184A1, 326348A1, See Figure 07-08, 07-10

1шт.

1

237021A1

LARGE PLATE

PLATE, LARGE

4шт.

2

237022A1

LARGE PLATE

PLATE, LARGE Inner

2шт.

3

237023A1

LARGE PLATE

PLATE, LARGE Piston

2шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

18шт.

5

190461A1

FLANGE

Inner

2шт.

6

190460A1

FLANGE

Outer

2шт.

243893A1

BRAKE PACKAGE

Brake Discs and Plates, Incl. 1 - 3, 11, 16, 21

1шт.

248071A1

SERVICE KIT

Brake, Incl. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Spacer

6шт.

8

NSS

NOT SOLD SEPARAT

Bushing

12шт.

9

190450A1

WASHER

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

Outer

6шт.

12

190492A1

O-RING,6.984" ID x 7.262" OD x 0.139"

Small

2шт.

13

190502A1

PISTON

Brake

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

Large

2шт.

15

190447A1

SPLIT PIN

6 x 14 mm

6шт.

16

237024A1

LARGE PLATE

PLATE, LARGE Outer

2шт.

17

190453A1

SLEEVE

Splined

2шт.

18

190470A1

SHAFT

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

M6 x 35

6шт.

20

190500A1

COVER

6шт.

21

237025A1

SPRING

6шт.

22

190504A1

SHIM

2шт.

23

192424A1

AUGER

Oil, Left Hand, Incl. 25

1шт.

24

192549A1

AUGER

Oil, Right Hand, Incl. 25, Not Illustrated

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

Not Illustrated

2шт.
