(06-68) - DRIVE SHAFT, FRONT AXLE

Запчасти Case 588G (06-68) - DRIVE SHAFT, FRONT AXLE (06) - POWER TRAIN

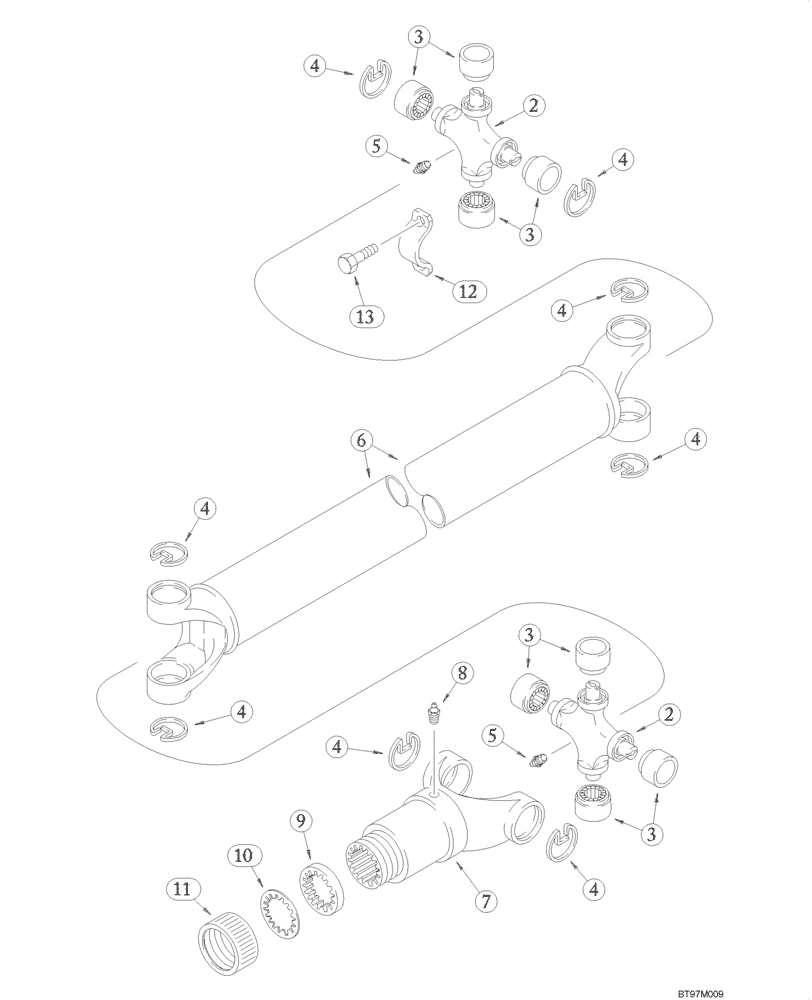

Схема запчастей Case 588G - (06-68) - DRIVE SHAFT, FRONT AXLE (06) - POWER TRAIN
5
10
6
13
3
5
12
4
3
11
4
2
3
2
4
9
4
4
7
3
4
4
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

With Grease Fittings (Ref 5)

1шт.

.

If Used

1шт.

.

284712A2

DRIVE SHAFT

Drive, Replaces 284712A1, Incl. 2 - 11, Used With 279172A1 or 319063A1 Front Axle, Used With 130786A2, A3 or 130787A2, A3 Transmission

1шт.

2

144278A1

PACKAGE,SERVICE

Incl. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing, Needle

4шт.

4

NSS

NOT SOLD SEPARAT

Ring

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1/4 tpr x 11/16

2шт.

6

NSS

NOT SOLD SEPARAT

Shaft

1шт.

7

144279A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1/4 tpr x 11/16

1шт.

9

D149860

SERVICE KIT

Dust Cap

1шт.

9

NSS

NOT SOLD SEPARAT

Washer, Cork

1шт.

10

NSS

NOT SOLD SEPARAT

Washer

1шт.

11

NSS

NOT SOLD SEPARAT

Cap

1шт.

12

90-6682T1

CLAMP

Purchase Separately

2шт.

13

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16; Replaces D137627 Bolt; Purchase Separatelyø

4шт.
