Запчасти Case 588G (06-53) - AXLE, FRONT - HOUSING (06) - POWER TRAIN

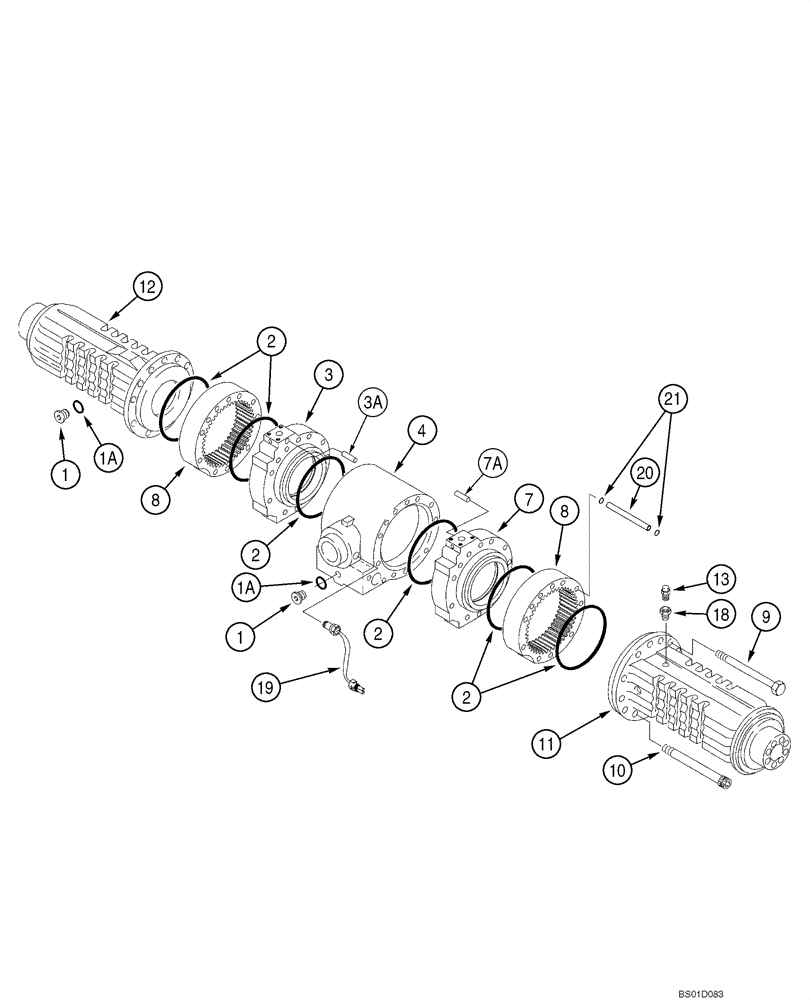

Схема запчастей Case 588G - (06-53) - AXLE, FRONT - HOUSING (06) - POWER TRAIN
7a
4
2
13
8
1a
1
19
7
11
1
2
3
9
3a
18
1a
10
21
8
2
12
2
20

Артикул

Название

Примечание

Количество

1

279172A1

AXLE, REAR

AXLE REAR Front Drive, Incl. Figure 06-53 - 06-57, 07-01 - 07-02, No Longer Available, Order 319063A1, See Figure 06-58, Also Order, 213-126, 322184A1, 326348A1, See Figure 07-08, 07-10

1шт.

1

87422526R

REMAN-REAR AXLE

585G, 586G, 588G, Reman For New P/N's 279172A1, 319063A1, 87422526

1шт.

1

87422526C

CORE-REAR AXLE

Return Number

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

Incl. 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

1-1/16 ID x 3/32

6шт.

3

315550A1

SET OF PARTS

Brake, Left Hand, Incl. 3A

1шт.

3a

D142898

PLUG,M10 x 1

10 x 1 mm

1шт.

4

222689A1

HOUSING

Center

1шт.

7

315551A1

SET OF PARTS

Brake, Right Hand, Incl. 7A

1шт.

7a

D142898

PLUG,M10 x 1

10 x 1 mm

1шт.

8

190459A1

FLANGE

2шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

M12 x 130

4шт.

11

295574A1

BEAM

Right Hand Side

1шт.

12

295573A1

BEAM

Left Hand Side

1шт.

13

1966149C2

BREATHER

1шт.

18

E135750

AXLE PIN

1шт.

19

192481A1

SENSOR

Oil Temperature

1шт.

20

222688A1

TUBE

Internal

1шт.

21

100760A1

O-RING

2шт.

Выбрано товаров: 21
